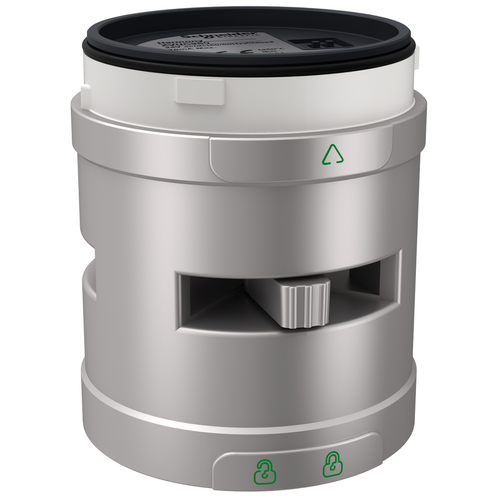

Harmony XVU Audible Buzzer Unit for Modular Tower Light - Silver (24 VAC/DC)

This indicating bank buzzer is an accessory designed as an audible and signalling unit . It is supplied with 24V AC/DC and has a mounting diameter of 60mm. It fits for modular tower light for custom assembly. It has a continuous or intermittent signal and its sound acoustic level is adjustable. It complies with CSA, UL, RoHS, CE standards and it has IP54 protection index.

• China Rohs Regulation: X
• Housing Colour: silver
• Rohs Exemption Information: Yes
• [Us] Rated Supply Voltage: 24 V AC/DC
• Net Weight: 0.077 kg
• Circularity Profile: ENVEOLI1403004EN
• Component Name: XVU
• Sustainable Offer Status: Green Premium product
• Range Of Product: Harmony XVU
• Product Certifications: CSA || CE || UL
• Assembly Style: customer assembly
• Ip Degree Of Protection: IP54
• Current Consumption: <= 70 mA
• Localisation On Device: top
• Product Or Component Type: modular tower light
• Environmental Disclosure: ENVPEP1403004EN
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Mercury Free: Yes
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Material: PBT (polybutylene terephthalate) V-0 UL 94 || ABS (acrylonitrile butadiene-styrene) V-0 UL 94
• Length: 58 mm
• Acoustic Level: 85 dB 1 m
• Mounting Diameter: 60 mm
• Sound Frequency: 2635 Hz
• Ambient Air Temperature For Storage: -40-70 °C
• Signalling Type: continuous or intermittent buzzer
• Beacon Or Indicator Bank Unit Type: buzzer unit
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• Ambient Air Temperature For Operation: -25-50 °C
• Maximum Power Dissipation In W: 1.7 W
