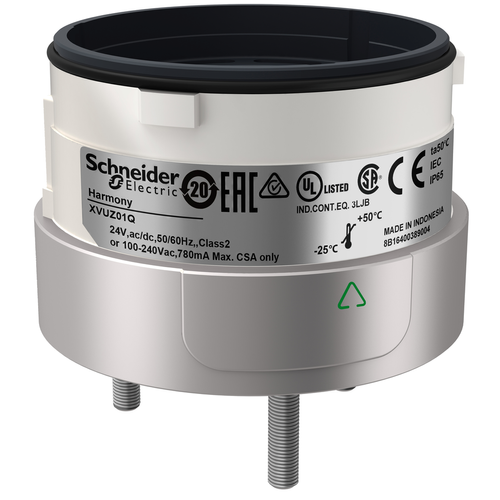

Harmony XVU Fixing Unit for Modular Tower Lights, 3 Pins, Direct Mounting - Silver

This silver fixing unit is a mounting and fixing accessory for modular tower light. It is supplied with 24V AC/DC and has a mounting diameter of 60mm. It allows users with easy installation via push-in terminals. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. It makes it ideal for operation in harsh environments.

• Housing Colour: silver
• Accessory / Separate Part Category: mounting and fixing accessory
• China Rohs Regulation: X
• Product Certifications: UL || CSA || CE
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Product Or Component Type: modular tower light
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Circularity Profile: ENVEOLI1403004EN
• Mercury Free: Yes
• Range Of Product: Harmony XVU
• Accessory / Separate Part Type: mounting plate
• Sustainable Offer Status: Green Premium product
• Product Compatibility: top AC body || top DC body || top swivel mounting support
• Mounting Diameter: 60 mm
• Length: 17-17 mm
• Pin Number: 3
• Rohs Exemption Information: Yes
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• [Us] Rated Supply Voltage: 24 V AC/DC || 110...240 V AC
• Ip Degree Of Protection: IP65
• Mounting Support: direct mounting
• Component Name: XVU
• Net Weight: 0.063 kg
• Material: PBT (polybutylene terephthalate) V-0 UL 94 || ABS (acrylonitrile butadiene-styrene) || PC (polycarbonate)
• Ambient Air Temperature For Operation: -25-50 °C
• Ambient Air Temperature For Storage: -40-70 °C
• Environmental Disclosure: ENVPEP1403004EN
• Connections - Terminals: push-in
