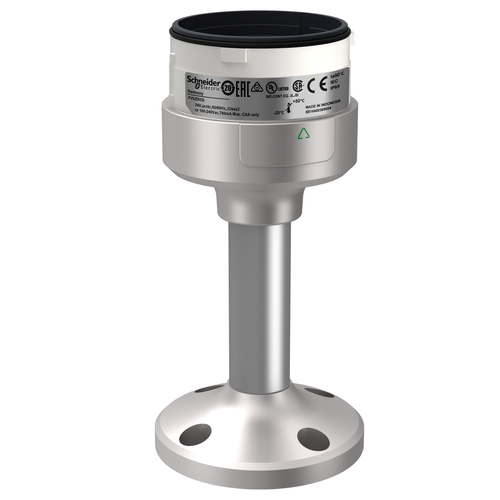

Harmony XVU Fixing Plate for Modular Tower Lights, 100mm Aluminum Pole - Silver

This silver fixing plate with support pole is designed as a mounting and fixing accessory for modular tower light. It has a mounting diameter of 60mm and contains base unit, support pole, and horizontal fixing plate. It allows fast and easy replacement of your signaling units via simple push-in terminals. It has a mounting diameter of 60mm with a pole height of 100mm. It complies with CSA, UL, and CE standards and it has IP65 protection index. It makes it ideal for operation in harsh environments.

• Mounting Support: plate with pole
• Component Name: XVU
• Sustainable Offer Status: Green Premium product
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• Ambient Air Temperature For Operation: -25-50 °C
• Product Or Component Type: modular tower light
• Product Certifications: CSA || CE || UL
• Accessory / Separate Part Type: fixing plate
• Environmental Disclosure: ENVPEP1403004EN
• Net Weight: 0.132 kg
• Length: 117-117 mm
• Ip Degree Of Protection: IP65
• Accessory / Separate Part Category: mounting and fixing accessory
• Ambient Air Temperature For Storage: -40-70 °C
• Material: PBT (polybutylene terephthalate) V-0 UL 94 || ABS (acrylonitrile butadiene-styrene) || PC (polycarbonate) || aluminum
• Connections - Terminals: push-in
• China Rohs Regulation: X
• Housing Color: silver
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• [Us] Rated Supply Voltage: 24 V AC/DC || 110...240 V AC
• Rohs Exemption Information: Yes
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Range Of Product: Harmony XVU
• Mercury Free: Yes
• Mounting Diameter: 60 mm
• Circularity Profile: ENVEOLI1403004EN
• Pole Height: 100-100 mm
• Product Compatibility: top AC body || top DC body || top swivel mounting support
