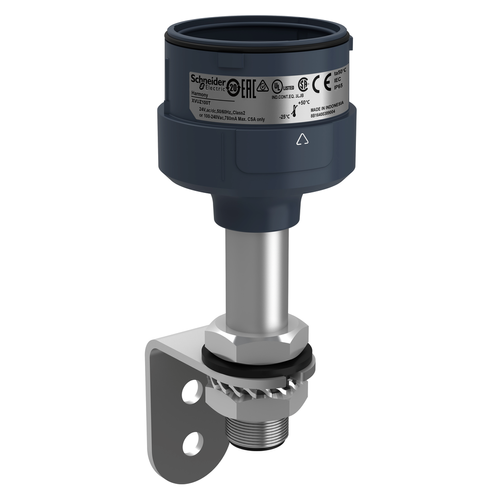

Harmony XVU Fixing Metal Bracket for Modular Tower Lights, 100mm Aluminum Pole - Black

This Harmony XVU fixing plate is work with DC and AC base units. It contains base unit, support pole, and vertical fixing plate. This black fixing plate with support pole is designed as a mounting and fixing accessory for modular tower light. It allows fast and easy replacement of your signaling units via simple push-in terminals. It has a diameter of 60mm with a pole height of 100mm. It complies with CSA, UL, and CE standards and it has IP32 protection index. Simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists.

• China Rohs Regulation: X
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Component Name: XVU
• [Us] Rated Supply Voltage: 24 V AC/DC || 110...240 V AC
• Accessory / Separate Part Category: mounting and fixing accessory
• Sustainable Offer Status: Green Premium product
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• Pole Heigth: 100-100 mm
• Product Or Component Type: modular tower light
• Mounting Support: metal bracket with pole
• Environmental Disclosure: ENVPEP1403004EN
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Ip Degree Of Protection: IP32
• Housing Colour: black
• Material: PBT (polybutylene terephthalate) V-0 UL 94 || ABS (acrylonitrile butadiene-styrene) || PC (polycarbonate) || aluminium
• Ambient Air Temperature For Operation: -25-50 °C
• Mounting Diameter: 60 mm
• Rohs Exemption Information: Yes
• Circularity Profile: ENVEOLI1403004EN
• Accessory / Separate Part Type: fixing plate
• Product Certifications: CSA || CE || UL
• Range Of Product: Harmony XVU
• Product Compatibility: top AC/DC body
• Length: 150-150 mm
• Ambient Air Temperature For Storage: -40-70 °C
• Connections - Terminals: push-in
• Mercury Free: Yes
• Net Weight: 0.22 kg
