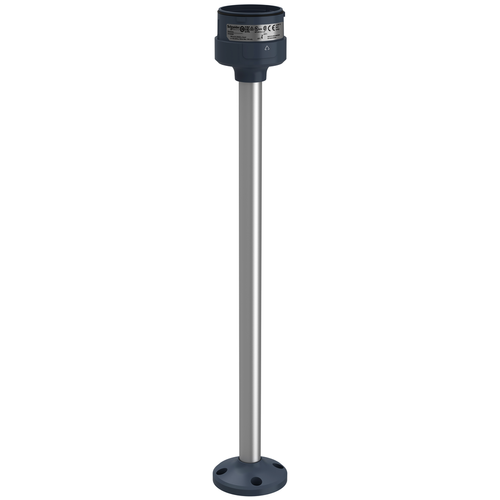

Harmony XVU Fixing Plate for Modular Tower Lights w/ 400mm Aluminum Pole - Black

This Harmony XVU fixing plate is work with DC and AC base units. It contains base unit, support pole, and vertical fixing plate. This black fixing plate with support pole is designed as a mounting and fixing accessory for modular tower light. It allows fast and easy replacement of your signaling units via simple push-in terminals. It has a diameter of 60mm with a pole height of 400mm. It complies with CSA, UL, and CE standards and it has IP65 protection index. Simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists.

• Housing Colour: black
• [Us] Rated Supply Voltage: 24 V AC/DC || 110...240 V AC
• Connections - Terminals: push-in
• Ambient Air Temperature For Operation: -25-50 °C
• Pole Heigth: 400-400 mm
• Length: 417-417 mm
• Mercury Free: Yes
• Ip Degree Of Protection: IP65
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Accessory / Separate Part Category: mounting and fixing accessory
• Mounting Diameter: 60 mm
• Material: PBT (polybutylene terephthalate) V-0 UL 94 || ABS (acrylonitrile butadiene-styrene) || PC (polycarbonate) || aluminium
• Accessory / Separate Part Type: fixing plate
• Ambient Air Temperature For Storage: -40-70 °C
• Range Of Product: Harmony XVU
• Rohs Exemption Information: Yes
• Net Weight: 0.236 kg
• Product Or Component Type: modular tower light
• Mounting Support: plate with pole
• Component Name: XVU
• Product Compatibility: top AC/DC body
• Product Certifications: UL || CSA || CE
• China Rohs Regulation: X
• Eu Rohs Directive: Compliant with Exemptions
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
