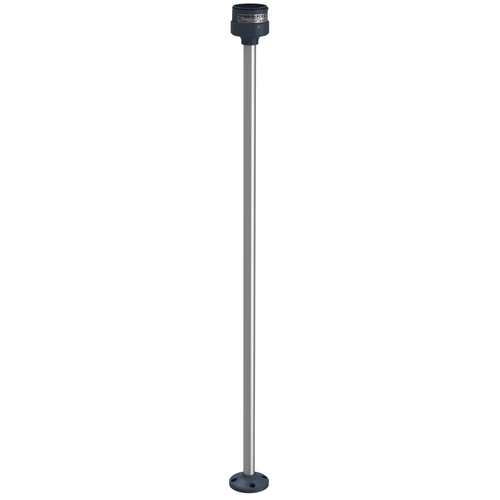

Harmony XVU Fixing Plate for Modular Tower Lights w/ 800mm Aluminum Pole - Black

This Harmony XVU fixing plate is work with DC and AC base units. This black fixing plate with support pole is designed as a mounting and fixing accessory for modular tower light. It allows fast and easy replacement of your signaling units via simple push-in terminals. It has a diameter of 60mm with a pole height of 800mm. It complies with CSA, UL, and CE standards and it has IP65 protection index. Simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists.

• [Us] Rated Supply Voltage: 24 V AC/DC || 110...240 V AC
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation: X
• Product Certifications: UL || CSA || CE
• Length: 817-817 mm
• Ip Degree Of Protection: IP65
• Housing Colour: black
• Material: PBT (polybutylene terephthalate) V-0 UL 94 || ABS (acrylonitrile butadiene-styrene) || PC (polycarbonate) || aluminium
• Range Of Product: Harmony XVU
• Rohs Exemption Information: Yes
• Ambient Air Temperature For Storage: -40-70 °C
• Mounting Support: plate with pole
• Net Weight: 0.43 kg
• Pole Heigth: 800-800 mm
• Product Compatibility: top AC/DC body
• Mounting Diameter: 60 mm
• Mercury Free: Yes
• Ambient Air Temperature For Operation: -25-50 °C
• Accessory / Separate Part Type: fixing plate
• Accessory / Separate Part Category: mounting and fixing accessory
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Product Or Component Type: modular tower light
• Connections - Terminals: push-in
• Eu Rohs Directive: Compliant with Exemptions
• Component Name: XVU
