Description

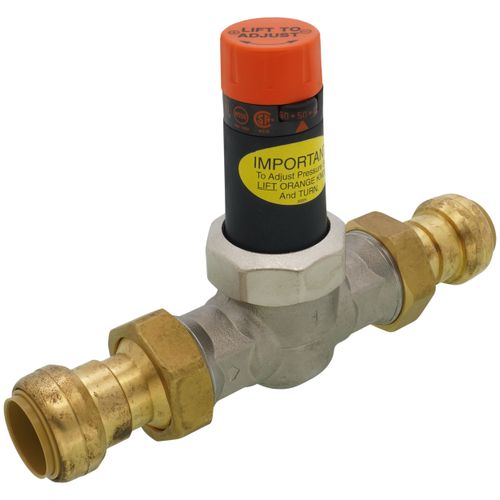

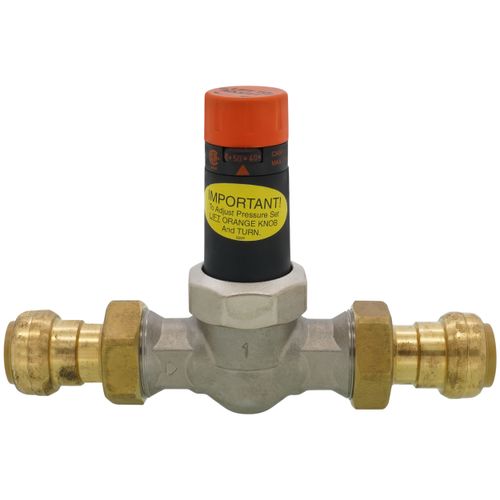

The Cash Acme SharkBite® SoloSet® EB-25 brings state-of-the-art water control technology to pressure regulators.

SoloSet® has a convenient orange pressure adjustment twist-cap, and numerical indicator which makes installation a quick, one-man job. The unique design also eliminates the water whistle or hum associated with most PRVs, due to innovative "micro-fingers" that dissipate noise as water flows across the seat. And thanks to a patented single-cartridge design, SoloSet® has fewer parts for increased reliability, and it can be serviced without having to remove the valve body.

While pressure reduction is an everyday need - necessary to protect appliances and plumbing fixtures - advanced water control technology from Cash Acme makes it possible for SoloSet® to provide unique new benefits to this common application. The biggest breakthrough is the simple numerical indicator that allows the exact desired pressure to be set even before the valve is installed. A job that previously required two men and a tedious, imprecise adjustment screw process can now be achieved quickly and efficiently by only one worker. And once installed, patented design features mean SoloSet® offers improved reliability and easier access for maintenance.

Features
  • Instant push-fit connection for increased ease of use:
    No soldering, glue or tools required.
  • Convenient orange twist-cap eliminates need for wrench adjustment, numerical indicator shows the pressure without the need for a gauge:
    One person can install, saving money and time!

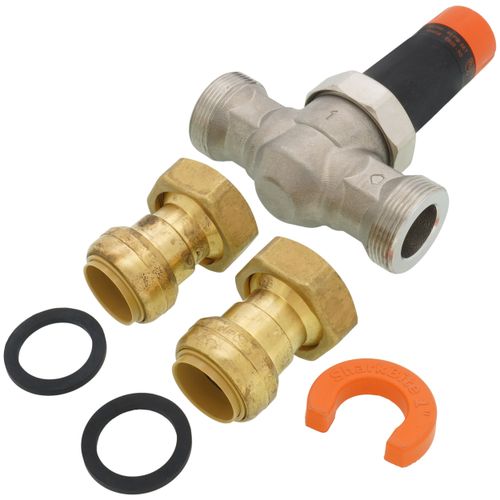

  • Single piece cartridge can be removed with valve body remaining in place:
    You can service all the parts from one place, quicker and easier!
  • Integral backpass check with the cartridge:
    No add-on or small parts, longer life and more reliable performance.
  • Cutting edge design and production incorporates "micro-fingers" that dissipate noise due to water flow across the seat:
    Meets the latest stringent international standards, quieter installation.
  • Available with a blanking cap for "rough-in" installations:
    No more dummy valve necessary.
  • Optional closing cap for direct burial applications:
    Protects the cartridge from external elements.
Read more
Specs
PEX Size:
1"
Size:
1"
Min Pressure (PSI):
20
Max Pressure (PSI):
90
Inlet Type:
Sharkbite (Pushfit)
Outlet Type:
Sharkbite (Pushfit)
Pressure Range:
20 to 90 psi
Max Temp (F):
180°F
Pressure Reg Setting:
45 psi (Factory Set)
Material:
Stainless Steel
Controlled Fluid:
Water
Tubing Compatibility:
CPVC
OD Controlled Copper
PEX
Standards Met:
ASSE 1003
CSA B356
Warranty:
5-Year Limited Warranty
Lead Free:
Yes
×
