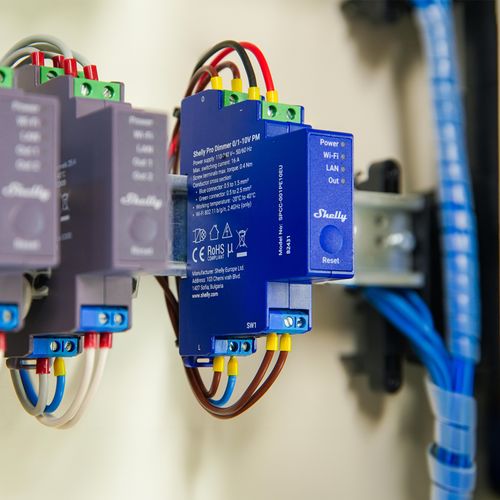

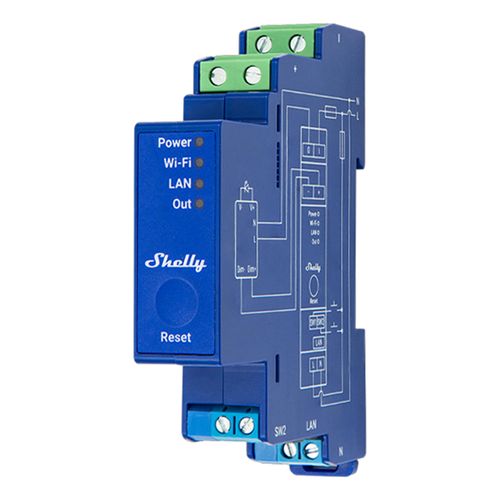

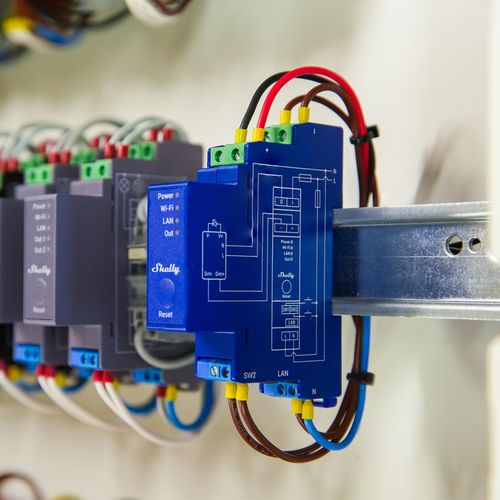

Pro 0-10V PM Smart Dimmer with Power Monitoring, DIN Rail
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$99.99 each
Backorder
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Plastic
16 Amps
DIN Rail
Blue
Description
–
Smart DIN-mountable dimming controller with power measurement, designed to manage 0/1-10V dimming drivers.
KEY FEATURES
PRODUCT FEATURES
KEY FEATURES
- DIN rail mountable
- Wi-Fi and Bluetooth-operated
- Diverse driver integration: Supports 0-10V and 1-10V types of drivers (lights, motors, valves, etc.)
- Power measurement: Precise monitoring of energy consumption. Information about voltage (V), current (A) and consumption (W) is displayed
- Ethernet connectivity
- Scripting: Allows creating automation scenarios through scripts.
- One/dual button dimming mode: Use with physical switches
- Night Mode: Enables to set a specific brightness during nighttime
- Auto on/off timers: Enables auto on/off timer setting
- Safety: Over current/voltage/power protection
- Virtual components: A special set of components that do not exist in the device initially and are created dynamically by the user
- Wi-Fi Range Extender & BLE Gateway
- No hub required! Easy control through the Shelly Smart Control app, most platforms and protocols, as well as voice assistants. Use it with Alexa, Home Assistant, or your preferred automation platform
- Supports KNXnet / IP communication
PRODUCT FEATURES
- LAN, Wi-Fi, and Bluetooth connectivity: LAN connection for high security and reliability. Simultaneous Wi-Fi and LAN usage, as back up when needed.
- Light intensity adjustment: Use the dimming function to set the brightness of your lights to your preference.
- Power monitoring: Shelly Pro Dimmer 0/1-10V PM provides precise monitoring of power consumption.
- Flexible input control: Use it with your existing switches, no matter if they're single or dual button.
- Smart schedules: Set custom schedules based on your daily agenda, or follow the sunrise/sunset and control your lighting accordingly.
- Smart scenes: Set custom scenes by combining Shelly Pro Dimmer 0/1-10V PM with your other Shelly devices
Specs
–
| Material: | Plastic |
|---|---|
| Amperage: | 16 |
| Mount: | DIN Rail |
| Humidity Range: | 30% to 70% RH |
| Color: | Blue |
| Product Type: | Controller |
