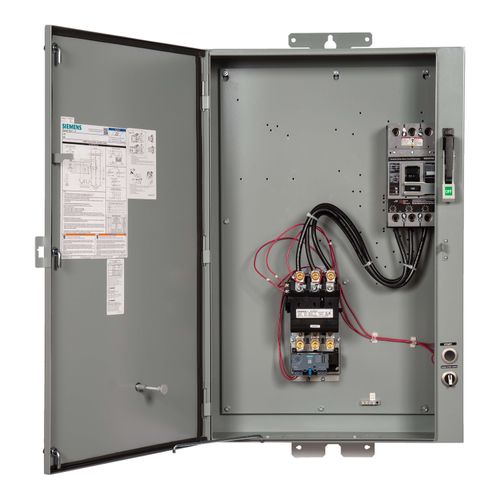

Pump Control Panel, Size 4, 100HP 480V, 50-200A O/L, 150A ETI-Breaker, 87IUH6MC
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$4,703.62 each
Backorder
MANUALS (1)
Lift Gate
–
This product weighs 87 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
480V
100 HP
150 Amps
Description
–
Pump control panel
Features:
Features:
- Size 4
- Three phase full voltage
- Solid-state overload relay
- OLR amp range 50-200A
- 220-240/440-480VAC 60Hz coil
- Standard type contactor
- 150A circuit breaker
- Hoa Sel Sw. <(>&<)> Start P.B.
- Enclosure NEMA type 3/3R
- Weather proof outdoor use
Specs
–
| Voltage: | 480V |
|---|---|
| Product Type: | Control Panel |
| Horse Power: | 100 |
| Amperage: | 150 |
