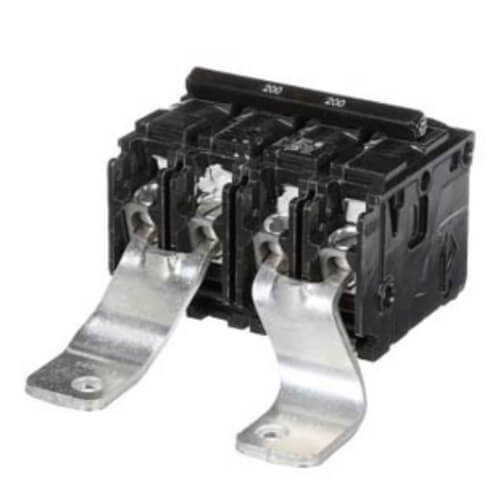

Main Breaker Converter (120/240V, 200A)

Overview
Siemens Low Voltage Residential Circuit Breakers Main Breakers - Family G Mains are Circuit Protection Load Center Mains, Feeders, and Miniature Circuit Breakers. Type: EQ Application: Electrical Distribution Standard: UL 489 Voltage Rating: 120/240V Amperage Rating: 200A Trip Range: Thermal Magnetic Interrupt Rating: 22 AIC Number Of Poles: 2P

Product Features

• Main breaker conversion kit
• Designed to allow for convertibility and invertiblilty of your panel
• Straight-in wired design reduces wire cost
• Converts main lug load centers to main breaker load centers
• Bolt-on type
• For use with 200 Amp EQ type load centers
• UL listed
• Accepts #3/0AWG Cu or 250Kcmil. AWG AI wire
• Use with residential / commercial metering equipment applications

Product Specifications

• Breaker Type: Main Breakers
• Electrical Product Type: Breaker
• Interruption Type: Standard Trip
• Maximum Amperage (amps): 200
• Mounting Type: Bolt On
• Number of Poles: 2
• Pack Size: 1
• Power Distribution Features: No Additional Features
• Product Weight (lb.): 2.20 lb
• Returnable: 90-Day
• Voltage (volts): 120/240
• Certifications and Listings: UL Listed
