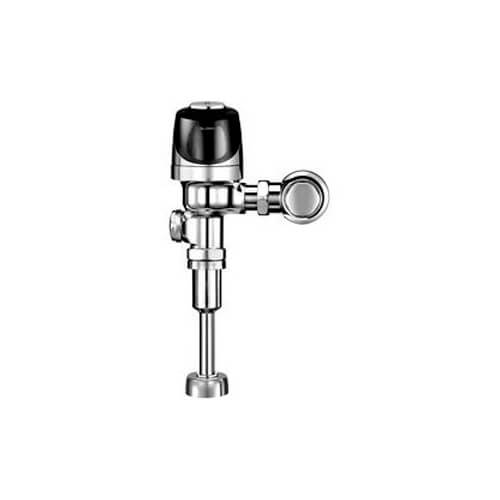

G2 8186 Optima Plus Exposed Battery-Powered Urinal Flushometer (1.5 GPF/5.7 LPF)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$627.54 each
In Stock
Get 2 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (4)
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Chrome Plated
Battery
16-1/2"
Urinal
3 Year Warranty
Description
–
Note: Due to water conservation regulations regarding maximum flow rate, this product is restricted in some states and local plumbing codes for *NEW* construction. These restrictions may not apply for repairing or replacing existing fixtures. Please check your local code before buying this item.
Sloan's Exposed, Battery Powered, Sensor Operated G2 Optima Plus Urinal Flushometer model (for either left or right hand supply) for 3/4" top spud urinals.
Features:
Sloan's Exposed, Battery Powered, Sensor Operated G2 Optima Plus Urinal Flushometer model (for either left or right hand supply) for 3/4" top spud urinals.
Features:
- Flush Cycle - Water Saver (1.5 gpf/ 5.7 Lpf)
- PERMEX Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- Flex Tube Diaphragm designed for improved life and reduced maintenance
- ADA Compliant OPTIMA Plus® Battery Powered Infrared Sensor for automatic "No Hands" operation
- Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
- Latching Solenoid Operator
- Engineered Metal Cover with replaceable Lens Window
- Courtesy Flush Override Button
- (4) Size AA Batteries factory installed
- "Low Battery" flashing LED
- Infrared sensor range adjustment screw
- Initial Set-up Range Indicator Light (first 10 minutes)
- 3/4" I.P.S. Screwdriver Bak-Chek® Angle Stop
- Free Spinning, Vandal Resistant Stop Cap
- Adjustable Tailpiece
- High Black Pressure Vacuum Breaker Flush Connection w/ One-Piece Bottom Hex Coupling Nut
- Spud Coupling & Flange for 3/4" Top Spud
- Sweat Solder Adapter w/ Cover Tube and Case Wall Flange w/ Set Screw
- High copper, low Zinc brass castings for dezincification resistance
- Fixed metering bypass and no external volume adjustment to ensure water conservation
- Flush Accuracy Controlled by CID Technology
- Diaphragm, Stop Seat and Vacuum Breaker molded from PERMEX Rubber Compound for Chloramine resistance
Specs
–
| Model: | G2 |
|---|---|
| Series: | 8186 |
| Type: | Sensor |
| Product Type: | Flushometer |
| Application: | Plumbing |
| Material: | Chrome Plated |
| Operating Pressure: | 15-100 psi |
| Control Circuit: | Solid State 6 VDC Input |
| Features: | 8 Second Arming Delay 24 Hour Sentinel Flush (after last flush) |
| Power Method: | Battery |
| Battery Type: | (4) Size AA Alkaline |
| Battery Life: | 3 Years @ 4000 Flushes/Month |
| Height: | 16-1/2" |
| Gallons Per Flush: | 1.5 |
| Spud Placement: | Top |
| Spud Size: | 3/4" |
| Commercial Use: | Yes |
| Installation Type: | Urinal |
| ADA: | Yes |
| Warranty: | 3 Year |
