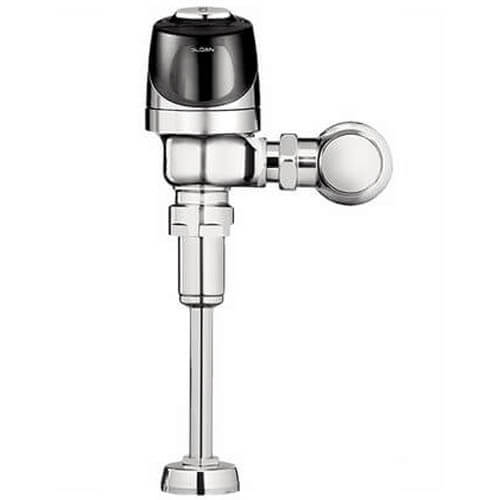

G2 8186 Optima Plus Exposed Sensor Battery-Powered Urinal Flushometer (0.5 GPF/1.9 LPF)

Exposed, Battery Powered, Sensor Operated Urinal Flushometer.

Features:

• Quiet, Exposed, Diaphragm Type, Chrome Plated Urinal Flushometer for either left or right hand supply with the following features:
• Spud Coupling and Flange for ¾” Top Spud
• Sweat Solder Adapter with Cover Tube and Cast Set Screw Wall Flange
• Initial Set-up Range Indicator Light (first 10 minutes)
• “Low Battery” Flashing LED
• Latching Solenoid Operator
• Flex Tube Diaphragm designed for improved life and reduced maintenance
• Engineered Metal Cover with replaceable Lens Window
• Four (4) Size AA alkaline Batteries included: Duracell® with DURALOCK Power Preserve TechnologyTM-guaranteed for up to 10 years in storage
• Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
• Handle Packing, Main Seat, Stop Seat and Vacuum Breaker Molded from PERMEX® Rubber Compound for Chloramine resistance
• ADA Compliant Battery Powered Infrared Sensor for automatic “Hands-free” operation
• Courtesy Flush® Override Button
• Flush accuracy controlled by CID® technology
• 3/4” I.P.S. Screwdriver Bak-Chek® Angle Stop with Vandal Resistant Stop Cap

Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance with the applicable sections of ASSE 1037 and ANSI/ASME 112.19.2.

• Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
