Royal 190-1.5-WB ES-S "L" Dimension 11-3/4" - 12-3/4", 1.5gpf/5.7Lpf

Note: Due to water conservation regulations regarding maximum flow rate, this product is restricted in some states and local plumbing codes for *NEW* construction. These restrictions may not apply for repairing or replacing existing fixtures. Please check your local code before buying this item.

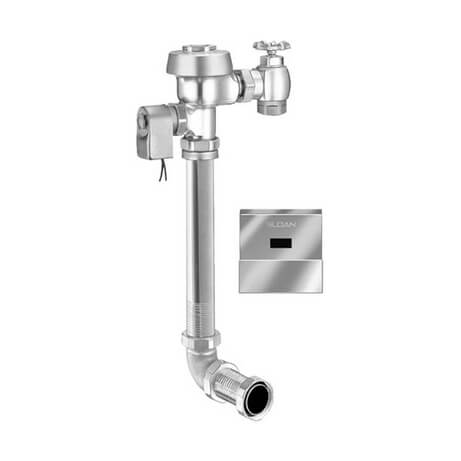

Quiet, Concealed, Diaphragm Type, Urinal Flushometer with the following features:

• PERMEX Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• OPTIMA EL-1500-L Self-Adaptive Infrared Sensor with Indicator Light
• 13" x 17" EASY ACCESS Wall Box with Stainless Steel Access Panel and Vandal Resistant Screws
• Screwdriver Bak-Chek Angle Stop
• Adjustable Tailpiece
• High Back Pressure Vacuum Breaker Flush Connection and Spud Coupling
• Sweat Solder Adapter
• Chrome Plated Exposed Flushometer Parts
• High Copper, Low Zinc Brass Castings for Dezincification Resistance
• Non-Hold-Open Integral Solenoid Operator, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
• Flush Accuracy Controlled by CID Technology
• Diaphragm, Stop Seat and Vacuum Breaker molded from PERMEX Rubber Compound for Chloramine Resistance

Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance to the applicable sections of ASSE 1037, ANSI/ASME A112.19.2, and Military Specification V-29193. Installation conforms to ADA requirements.
