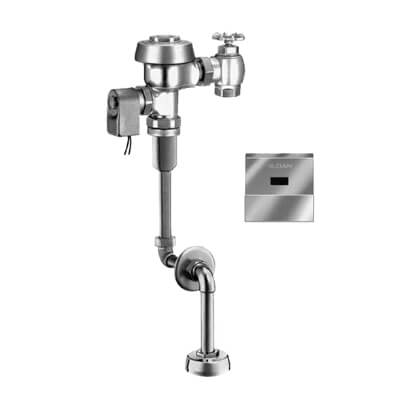

Royal 197-0.5 ES-S "L" Dimension 11-3/4" - 12-3/4", 0.5gpf/1.9Lpf

Quiet, Exposed, Diaphragm Type, Chrome Plated Urinal Flushometer for either left or right hand supply with the following features:

• PERMEX Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• OPTIMA EL-1500-L Self-Adaptive Infrared Sensor with Indicator Light
• Chrome Plated Wall Cover Plate (for 2-gang Electrical Box) with Vandal Resistant Screws
• Screwdriver Bak-Chek½ Angle Stop
• Free Spinning Vandal Resistant Stop Cap
• Adjustable Tailpiece
• High Back Pressure Vacuum Breaker Flush Connection with One-Piece Bottom Hex Coupling Nut, Spud Coupling and Flange
• Sweat Solder Adapter with Cover Tube and Cast Wall Flange with Set Screw
• High Copper, Low Zinc Brass Castings for Dezincification Resistance
• Non-Hold-Open Integral Solenoid Operator, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
• Flush Accuracy Controlled by CID Technology
• Diaphragm, Stop Seat and Vacuum Breaker molded from PERMEX+ Rubber Compound for Chloramine Resistance

Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance to the applicable sections of ASSE 1037, ANSI/ASME A112.19.2, and Military Specification V-29193. Installation conforms to ADA requirements.
