1/2" Flare Connection Multi Angle

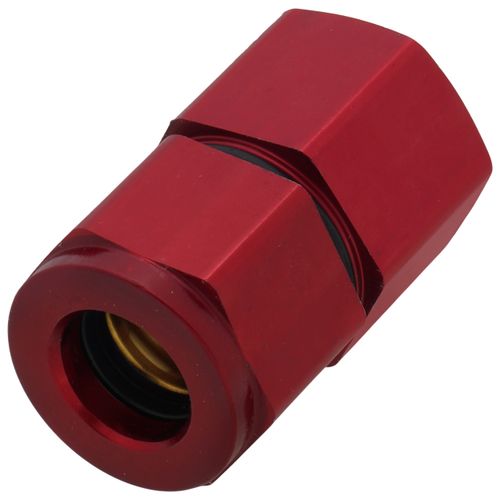

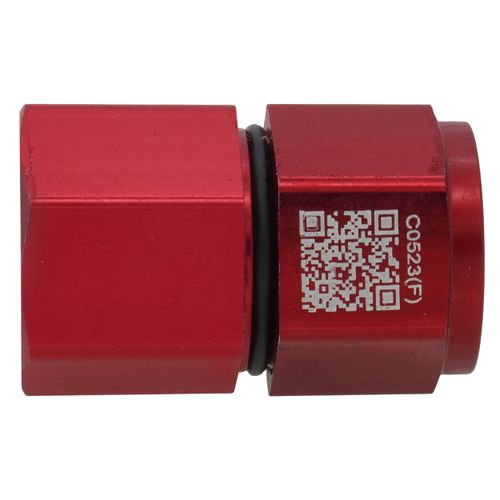

1/2" Flare Connection Multi Angle (FCMA1200) - SmartLock Flare Connection Fitting
Connect 1/2" copper or aluminum tubes to flare valves at 37.5° or 45° without flaring or brazing. SmartLock FCMA1200 uses patented metal-to-metal sealing technology for permanent, zero-leak joints under any pressure or temperature. Standard wrenches align and tighten components automatically, helping technicians finish installs faster.

What's in the Box (pre-assembled)

• One SmartLock FCMA1200 fitting body
• Two union nuts
• Two ferrules
• One positioning strip

Key Features

• No flaring required. Tighten nuts to seal tubes to flare valves without heat or flame.
• Multiple-angle compatibility. Designed for use with 37.5° and 45° flare valves for flexible routing.
• Automatic alignment. Positioning strip holds ferrules and body in perfect alignment for smooth assembly.
• Metal-to-metal seal. Compression ferrules deform to seal under high pressure for lasting, leak-free joints.
• Over-torque prevention. Built-in stops prevent nuts from overtightening and damaging the fitting.
• Corrosion-resistant finish.

Compatibility

• Works with all common refrigerants, including R-410A, R-22, R-134a, R-744, R-717 and A2L blends.
• Suitable for copper-to-copper, copper-to-aluminum and aluminum-to-aluminum connections.

Installation & Tools

• Tools needed. Standard open-end or adjustable wrenches only.

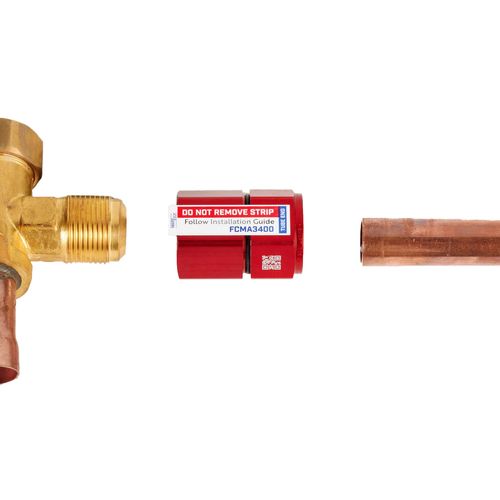

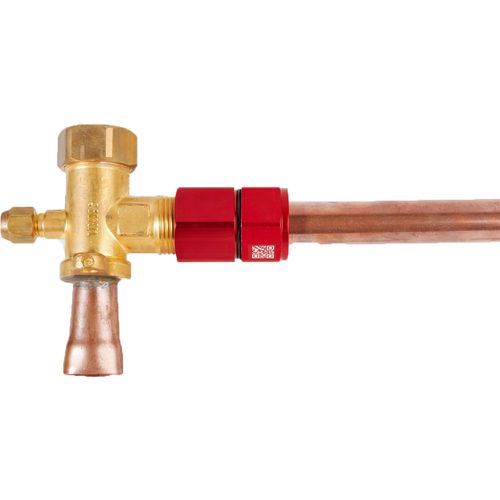

• Installation tip. Hand-start nuts on tube and valve, then wrench-tighten until the fitting's torque stop engages.
