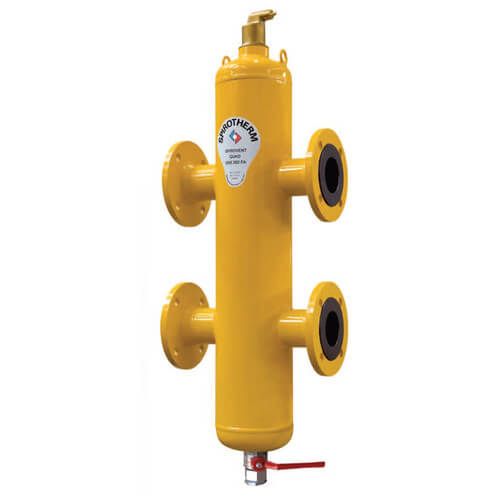

2-1/2" Spirovent Quad Steel Air Eliminator & Dirt Separator (Flanged)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$5,749.73 each
Backorder
MANUALS (3)
Lift Gate
–
This product weighs 119 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Flanged x Flanged Connection
Steel
2-1/2"
150 MAX PSI
270°F Max Temp
Description
–
The Spirovent Quad VDX combines the features and benefits of the industry leading Spirovent air eliminator and Spirotrap dirt separator with a center chamber between the four nozzles. Used primarily as a hydraulic separator in a low loss header design, it is available in brass from 1" through 2" and steel through 12".
Benefits
Benefits
- Integral brass, float-operated venting mechanism with Viton seal
- No bypass, isolating valves or replacement filters to clog and reduce flow
- Two full-flow operating functions plus hydraulic balance in a low loss header
- Dirt can be flushed while the system is in full operation
- Quiet operation
- Minimum pressure drop; always constant
- Increased component life
- Reduced oxygen-based corrosion and pump cavitation
- Provides optimum heat transfer
Specs
–
| Product Type: | Hydraulic Separator Air Eliminator Dirt Eliminator |
|---|---|
| Size: | 2-1/2" |
| Max Temp (F): | 270°F |
| Max Pressure (PSI): | 150 |
| Material: | Steel |
| Connection Method: | Flanged |
| Connection Type: | Flanged x Flanged |
| Type: | Non-Magnetic |
