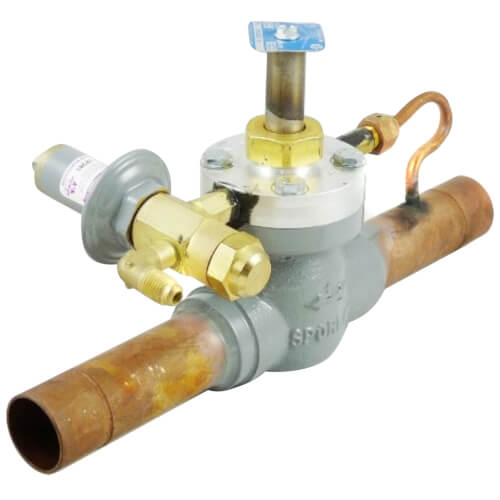

SHGBE-15 1-1/8" ODF Discharge Bypass Valve, Externally Equalized (0/75 PSIG)

• BODY STYLE: N/A
• PRESSURE RANGE ADJUSTMENT (PSIG): 0/75
• VALVE TYPE: 15
• INLET SIZE (INCH): 1-1/8" ODF
• OUTLET SIZE (INCH): 1-1/8" ODF
• PORT SIZE (INCH): 1"
• TYPE: SHGBE
• SOLENOID OPTION: Less Coil
• EQUALIZER METHOD: Externally Equalized
• CONNECTION TYPE: Solder
• CONNECTION MATERIAL: Copper

The Sporlan Type ADR, HGB, and SHGB discharge bypass regulating valves have a brass body. The smaller capacity direct acting valves are available with SAE or ODF connections. The larger capacity pilot operated valves have extended copper connections. The direct acting valves are available with nonadjustable or adjustable settings. The pilot operated valves are available with adjustable settings. The primary function of these valves, referred to as DBV valves, is to limit the minimum evaporating pressure during periods of low load either to prevent coil icing or avoid operating the compressor at a lower suction pressure than it was designed to operate. Each valve is factory tested to ensure positive leak-free performance.

Features/Benefits:

• Optional inlet strainer
• Range of adjustable settings
• The SHGB pilot operated valves have a solenoid stop feature
• Design working pressure for the (A)DRI, (A)DRS, (A)DRP and (A)DRH valves is 500 psi (34.5 bar), SHGB valves is 450 psi (31 bar) and the HGB -1 through HGB-8 valves is 700 psi (48.3 bar)
