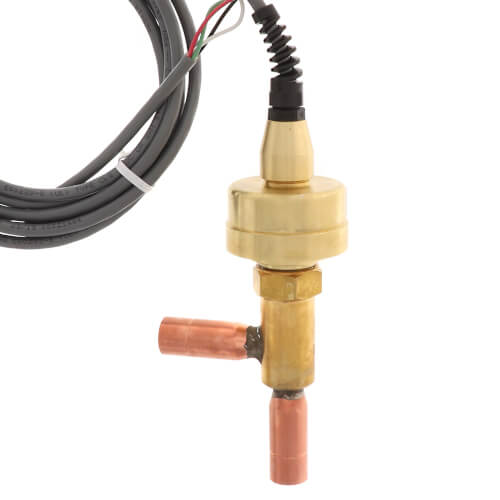

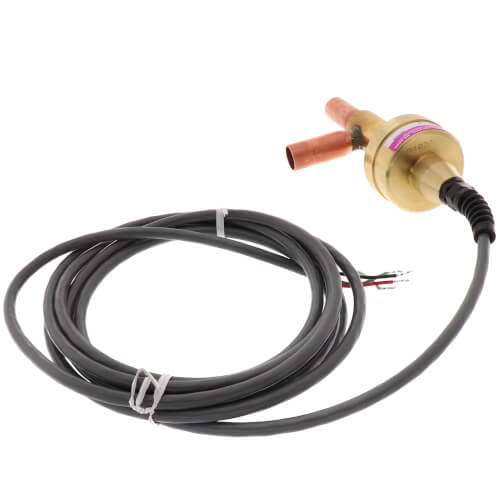

SDR-3X 5/8" ODF Angle Electronic Discharge Bypass Valve w/ 10 Ft. Cable

• VALVE TYPE: SDR-3X
• INLET CONNECTION: 5/8" ODF
• OUTLET CONNECTION: 5/8" ODF
• RESOLUTION (STEPS): 3193
• CABLE LENGTH: 10'
• CONFIGURATION: Angle
• MOTOR TYPE: 2 Phase Permanent Magnet- 2 Coil Bipolar
• MINIMUM AMBIENT TEMPERATURE (F): -40°
• MINIMUM FLUID TEMPERATURE (F): -40°

Sporlan SDR Electric Discharge Bypass Valves are electronically controlled, stepper motor driven valves, designed specifically for precise control of discharge gas bypass applications. Featuring high resolution actuator assemblies, these valves provide unmatched control capability across a wide range of applications and loads. These valves are most commonly paired with a Sporlan Pressure Control, Temperature Control or Interface Board (IB).

Features/Benefits:

• Direct temperature control
• Tight shutoff when closed
• Can be interfaced with direct digital controls or other building management systems
• Functions as a standalone temperature control when used with a Sporlan TCB
• Capacities up to 40 tons R-410A
• Suitable for use with CFC, HCFC, and HFC refrigerants
• Proven reliable step motor design
• High force output for unparalleled reliability
• Corrosion resistant materials used throughout
• Low power consumption – 4 Watts
