Manual Motor Starter with Toggle, Enclosure NEMA Rating No Enclosure, 16 Amps

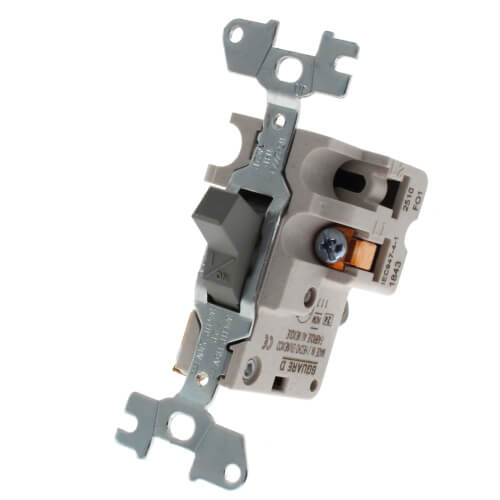

Square D 2510F fractional motor manual starter provide overload protection and manual On Off control for small single phase AC motors. Open style starter fits industry standard single-gang switch boxes for direct mounting in a wall or machine using any standard cover plate with a standard single cutout. Overload heater element is ordered separately to match motor data. Pilot light option is available. A variety of enclosures are available. Units are UL Recognized and CSA Certified for global applications. This 1 pole non-reversing manual starter has a 16A current rating. Starter has a 1 HP rating at 115, 230, and 277 VAC. This manual starter is not supplied with an enclosure. This manual starter is 4.13 inches tall, 1.69 inches wide and 2.22 inches deep. It weighs 0.33 lb. This device is without a pilot light indicator. Manual starter is UL listed and CSA certified.

Specifications:

• Phase Rating 1 Hp At 115 To 230/277 Vac
• 1 Pole
• Open Enclosure
• Toggle Operator
• Overloads Melting Alloy
• 2510 Model
• Approval Ul, Csa
