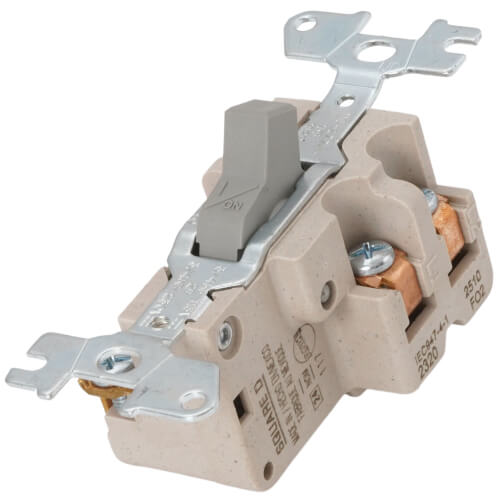

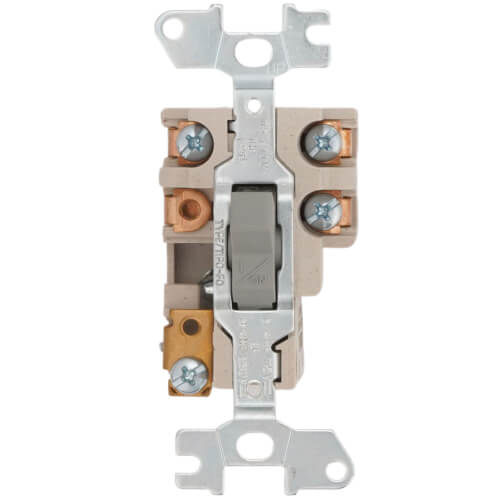

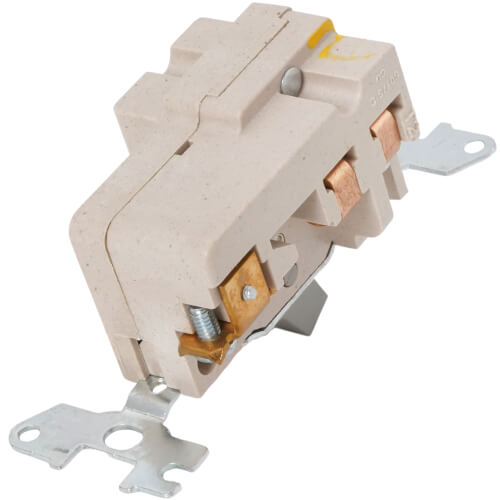

2-Pole Manual Open Starter (16A)

Square D 2510F fractional motor manual starter provide overload protection and manual On Off control for small single phase AC motors. Open style starter fits industry standard single-gang switch boxes for direct mounting in a wall or machine using any standard cover plate with a standard single cutout. Overload heater element is ordered separately to match motor data. Pilot light option is available. A variety of enclosures are available. Units are UL Recognized and CSA Certified for global applications. This 2 pole nonreversing manual starter has a 16A current rating. Starter has a 1 HP at 115 VAC, 2 HP at 230 VAC, 1 HP at 277 VAC and 0.75 HP at 115 and 230 VDC ratings. This NEMA 1 general purpose enclosure is a surface mounting enclosure. This manual starter is 4.13 inches tall, 1.69 inches wide and 2.22 inches deep. It weighs 0.33 lb. This device is without a pilot light indicator. Manual starter is UL listed and CSA certified.

Specifications:

• Phase Rating 0.75 Hp At 115 To 230 Vac
• Phase Rating 1 Hp At 115 To 277 Vac
• Phase Rating 2 Hp At 230 Vac
• 2 Pole
• Open Enclosure
• Toggle Operator
• Overloads Melting Alloy
• 2510 Model
• Approval Ul, Csa
