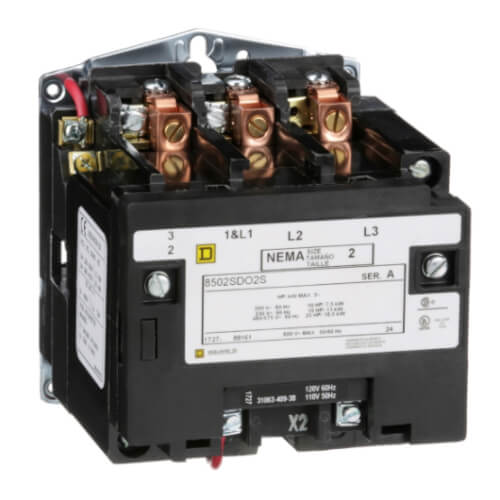

Type S NEMA Size 2, Non-Reversing Contactor, 3 Pole, 45 Amp, 120V

Type S non-reversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately. Type S contactors have ratings up to 810 amperes. This 3 pole NEMA Size 2 non-reversing contactor has a 45 ampere rating. Three phase NEMA Size 2 contactors have 10 HP at 200, 15 HP at 230 VAC and 25 HP at 460 and 575 VAC ratings. This NEMA contactor has a 100 kA maximum SCCR rating per UL508A when protected by an appropriate circuit breaker or fuse. These contactors are available with replaceable coils in a wide variety of voltages. This contactor has a 110/120 VAC 50/60 Hz coil that is wired for separate control. This NEMA contactor is an open device without an enclosure. This contactor is 5.13 inches tall, 4.31 inches wide and 4.94 inches deep. A wide variety of accessories are available for Type S contactors. Type S NEMA contactors are UL listed and CSA certified.

Specifications:

• Product Range: 8502S
• Contactor Type: Non-reversing
• NEMA Size: 2
• Rated Current: 45A
• Number of Poles: 3
• Maximum Voltage Rating: 600 VAC
• Phase: 3
• Horse Power Rating: 10 HP @ 200 VAC
• Horse Power Rating: 15 HP @ 230 VAC
• Horse Power Rating: 25 HP @ 460 VAC
• Horse Power Rating: 25 HP @ 575 VAC
• SCCR: Circuit-breaker 100 A maximum, SCCR: 100 kA at 480 V AC
• Coil Voltage: 120 VAC - 60 Hz; 110 VAC - 50 Hz
• Control Circuit Type: Separate control circuit
• Terminal Type: Screw clamp terminals
• Certifications: UL listed file E78351 CCN NLDX, CSA
