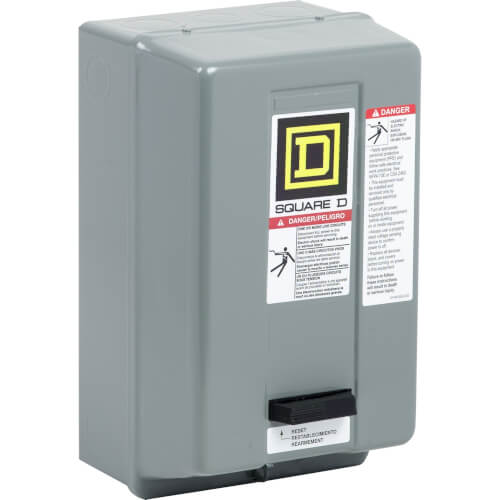

3-Pole NEMA-1 Non Reversing Motor Starter, 3 Phase 9A (220/240V)

Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 00 non-reversing starter has an 9 ampere rating. This NEMA Size 00 motor starter has 3 phase ratings of 1.5 HP at 220 and 230 VAC and 2 HP at 460 and 575 VAC. This non-reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions. This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 220/240 VAC 50/60 Hz operating coil wired for common control. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this starter. Enclosure is 10.00 inches tall, 6.00 inches wide and 5.56 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.

• Type: S
• Control Circuit Type: Common control circuit
• Control Circuit Voltage: 220V AC 60 Hz, 240 V AC 60 Hz
• Motor starter type: Non reversing
• Current Rating: 9 A
• Number of Poles: 3P
• Phase: 3 phase
• Horsepower Rating: 1.5 HP 200 V AC, 1.5 HP 230 V AC, 2 HP 460 V AC, 2 HP 575 V AC
• System Voltage: 600 V AC
• Control Units: No control units
• Electrical Connection: Screw clamp terminals
• NEMA Size: 00
• Certifications: CSA, NEMA, UL listed
• Enclosure Type: NEMA 1 painted sheet steel
