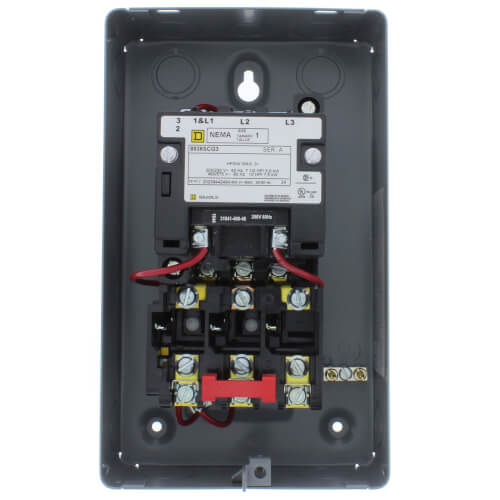

208V Magnetic Motor Starter, NEMA Size 1, 3 Pole (27A)

Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 1 non-reversing starter has a 27 ampere rating. This NEMA Size 1 motor starter has 3 phase ratings of 7.5 HP at 200 and 230 VAC and 10 HP at 460 and 575 VAC. This non-reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions. This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 208 VAC 60 Hz operating coil wired for common control. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this starter. Enclosure is 10.00 inches tall, 6.00 inches wide and 5.56 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.

Specifications

• Type: Magnetic Motor Starter
• NEMA Size: 1
• Amps: AC 27 Coil
• Volts: 208VAC
• Enclosure: NEMA Rating 1
• HP @ 3 Phase - 240V 7-1/2
• HP @ 3 Phase - 480V 10
• Action: Nonreversing
• Number of Poles: 3
• Height: 10"
• Width: 6"
• Depth: 5.56"
• Standards: UL Listed/CSA Certified
• Starter Type: NEMA
• Hz: 60
