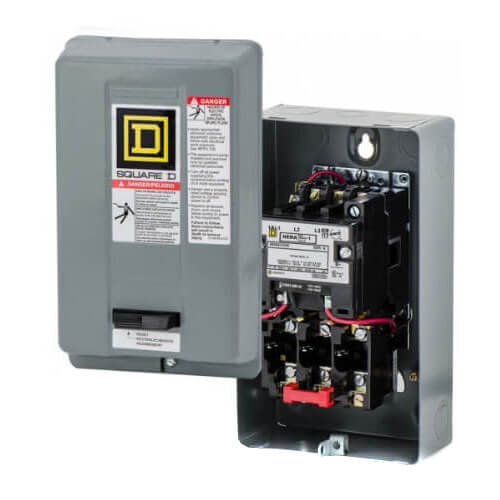

3-Pole NEMA-1 Motor Starter, 27A (208V)

Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 1 non-reversing starter has a 27 ampere rating. This NEMA Size 1 motor starter has 3 phase ratings of 7.5 HP at 200 and 230 VAC and 10 HP at 460 and 575 VAC. This non-reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions. This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 208 VAC 60 Hz operating coil wired for separate control. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this starter. Enclosure is 10.00 inches tall, 6.00 inches wide and 5.56 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.

Specifications:

• Manufacturer : Schneider Electric / Square D
• Cat. No. : 8536SCG3V08
• Alternate Part No. : 8536-SCG3V08
• Product Type : Nema Starter
• UPC : 785901765813
• Full Voltage Non Reversing
• Amperage Rating : 27 Amps
• No. Of Phase : 3 Phase
• No. Of Poles : 3 Pole
• Voltage Rating : 600
• Coil Voltage : 208 V At 60 Hz
• Size Nema 1
• Nema 1 Enclosure
• Overloads Melting Alloy
• Nema Construction Standard
• 8536 Model
• Power Rating/Voltage : 7-1/2 Hp At 200/230 Vac 50/60 Hz 10 Hp At 460/575 Vac 50/60 Hz
• Application : Used for Full-Voltage Starting and Stopping of AC Squirrel Cage Motors
• Authentic Schneider Electric / Square D Product
