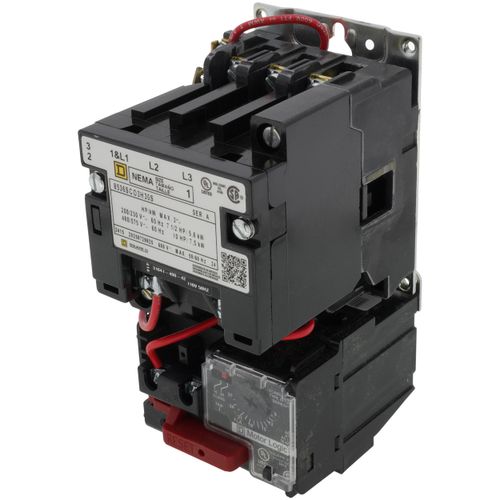

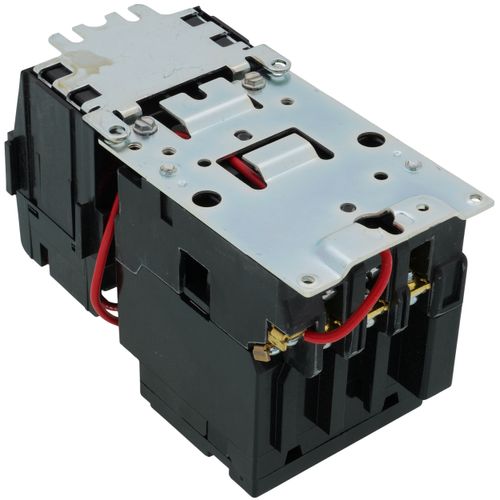

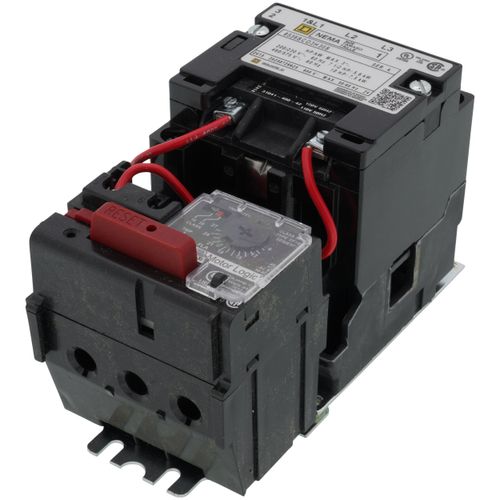

4-Pole non-Reversing Magnetic Starter, 3-Phase, 27A (120V)

Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 1 non-reversing starter has a 27 ampere rating. This NEMA Size 1 motor starter has 3 phase ratings of 7.5 HP at 200 and 230 VAC and 10 HP at 460 and 575 VAC. This non-reversing NEMA motor starter has a Motor Logic overload relay with a 9A to 27A range to sense over current conditions. This NEMA starter has a 100 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. This NEMA starter is an open device without an enclosure. This starter is 6.77 inches tall, 3.50 inches wide and 4.22 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.

Specifications:

• Control Circuit Voltage 110 V AC 50 Hz
• 120 V AC 60 Hz
• Motor starter type Non reversing
• Line Rated Current 27 A
• Number of Poles 3P
• Phase 3 phases
• Horsepower Rating 7.5 HP 200 V AC
• 7.5 HP 230 V AC
• 10 HP 460 V AC
• 10 HP 575 V AC
• System Voltage 600 V AC
• Control Units No control units
• Thermal overload type Solid state Motor Logic class 10/20
• Electrical connection Screw clamp terminals
• NEMA size 1
• Height 6.77 in (172 mm)
• Depth 4.21 in (107 mm)
• Width 3.5 in (89 mm)
