2-Pole NEMA-1, Definite Purpose Starter, 40A (208/240V)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$253.31 each
In Stock
Get 8 Tue, Jun 23
Order by today, receive Tuesday
MANUALS (2)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
40 Amps
208/240V
Description
–

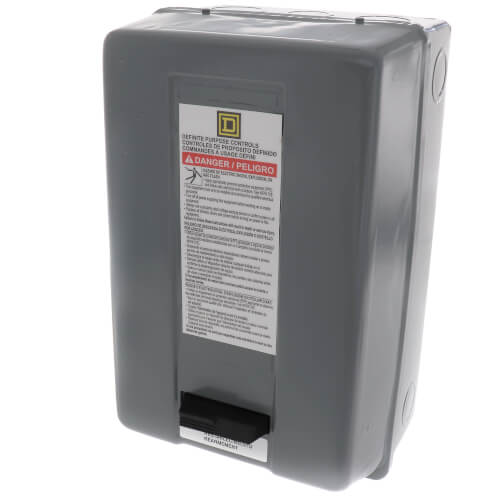

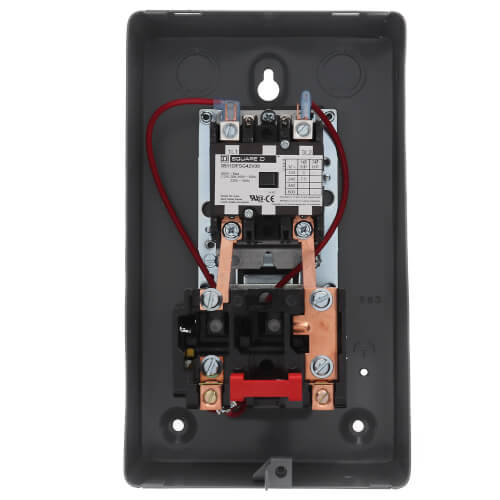

8911 definite purpose starters are inexpensive starters for applications with relatively low duty cycles. Typical applications include air compressors, agricultural equipment, pumps, and HVAC equipment. This two pole definite purpose starter has a full load rating of 40 amperes. This starter has ratings of 3 HP at 115 VAC and 7.5 HP at 230 VAC single phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 220/208 to 240 VAC 50/60 Hz coil. The starter has straight through wiring. The melting alloy type overload relay uses Type B thermal units to sense over current conditions. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this definite purpose starter. Enclosure is 8.50 inches tall, 4.84 inches wide and 4.02 inches deep. Auxiliary contacts are available for these starters. 8911DPS definite purpose starters are UL component recognized.
Specs
–
| Product Type: | Starter |
|---|---|
| Amperage: | 40 |
| Poles: | 2 |
| Voltage: | 208/240V |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Reviews
5 out of 4 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-4 of 4 reviews
Very satisfied with this product
My shop air compressor stopped working, found the starter box had burnt out. I ordered one from SupplyHouse.com They had good prices and fast delivery to get me back up and running.
Haywood
Hicksville, NY
2 years ago
Verified Buyer
Was this review helpful to you?
I had a problem with the first one but they handled it
I had an issue with the first one but they handled it promptly and it got me back up and running
ACR
Naples Florida
2 years ago
Verified Buyer
Was this review helpful to you?
I will buy another for my other compressor!
The Square D magnetic starter was easy to install and operates as intended.
Jerry
Tunkhannock, Pa.
2 years ago
Verified Buyer
Was this review helpful to you?
Typical Square D qualit -- excellemt
I bought this thinking it could do something it couldn't but that was my fault.Square D's tech support explained to me what I needed to do to adapt it to do what I wanted, and all is well. It works great;
Maine Geezer
Brunswick, ME
3 years ago
Verified Buyer
Was this review helpful to you?
