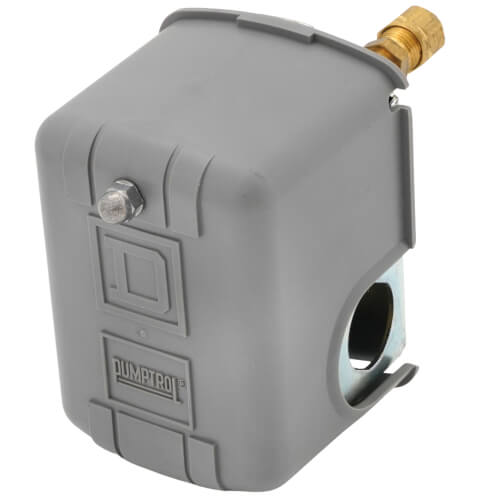

Air Compressor Pressure Switch w/ 2 Way Release Valve, 1/4" Threaded, Low HP, 100-200 PSI, Off at 175 PSI
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$22.80 each
In Stock
Get 13 Wed, Jun 14
More Available
Order by today, receive Wednesday
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Threaded Connection
1/4" Connection
Description
–
- Factory modification: 2-way pressure release valve
- Pressure sensor type: Electromechanical pressure switch
- Controlled fluid: Air (-22...257 °F)
- Adjustable range on rising pressure: 100...200 psi
- Approximate adjustable differential: 40 psi
- Destruction pressure: 220 psi
- Pressure actuator: Diaphragm
- Pressure switch type of operation: Regulation between 2 thresholds
- Scale type: Fixed differential
- Setting: Internal
- Local display: Without
- Contacts type and composition: 2 NC, snap action, DPST-DB, Form YY
- Cable entry number: 2 0.88 in cable entries with 0.84 in across flats UL 508
- Electrical connection: Screw-clamp terminals, clamping capacity: 5.261 mm / Screw-clamp terminals, clamping capacity: 10 AWG
- Fluid connection type: 0.25 inch NPT external conforming to UL 508
- Short circuit protection: 20 A by cartridge fuse, type gG
- Materials in contact with fluid: Nitrile (Buna-N) or equivalent rubber diaphragm / Zinc plated steel or equivalent flange
- Material: Noryl thermoplastic resin or equivalent cover
- Polypropylene cover
- Operating position: Any position
- Motor power kW: 0.75 kW (1 hp) at 575 V AC, 3 phases / 0.75 kW (1 hp) at 460 V AC, 3 phases / 2.2 kW (3 hp) at 230 V AC, 3 phases / 1.5 kW (2 hp) at 115 V AC, 3 phases / 1.1 kW (1.5 hp) at 115 V AC, 1 phase / 1.5 kW (2 hp) at 230 V AC, 1 phase
- Electrical durability: 100000 cycles at 10 cyc/mn
- Mechanical durability: 300000 cycles
- Terminal block type: 4 terminals
- Operating rate: 10 cyc/mn
- [Ui] rated insulation voltage: 575 V conforming to UL 508
Specs
–
| Pressure On/Off Setting (PSI): | 135/175 |
|---|---|
| Switch: | DPST |
| Pressure Range: | 60 to 200 psi |
| Pressure Differential: | 40 psi |
| Connection Type: | Threaded |
| Connection Size: | 1/4" |
