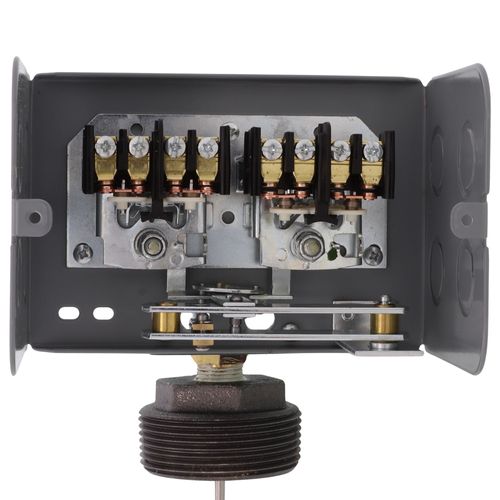

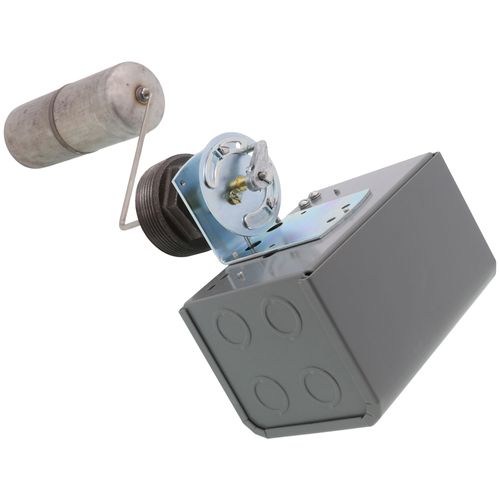

Alternator Liquid Level Switch (NEMA 1)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$486.00 each
In Stock
Get 9 Tomorrow, Jun 5
Order by 6PM, receive Tomorrow
MANUALS (3)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
2-1/2"
Description
–
Note: Due to a rebranding at Schneider Electric, this product now falls under the Telemecanique brand. The product itself remains unchanged
Overview
Overview
- Application: Closed tanks using duplex, condensate pumps. A 2.5 in. cast iron bushing attaches the float switch to the tank.
- Float Movement: Transmitted through a nitrile rubber seal such as a Buna-N quad ring. Occasional seal replacement may be necessary.
- Tank Pressure: Up to 50 psi
- Ambient Temperature: -22 to 200 °F
- Media Temperature (Minimum): Solidification point of the medium in the tank, down to -22 °F
- Contact Operation: Close on liquid rise (standard)
- Float Travel: Float travel is determined by the rod length. An external pointer indicates the float position.
- Materials (Standard): #304 SS float, #316 SS rod, 2.5 in. cast iron bushing, brass sealing connector, Buna-N quad ring packing.
- Water Level Change (in.): 4.75 - 9.25 (Min. - Max.)
Specs
–
| Enclosure Type: | NEMA-1 |
|---|---|
| Size: | 2-1/2" |
| Application: | Liquid Flow |
