Altivar 212 Variable Speed Drive, 7.5kW, 3 Pole, 3 PH (480V, 10 HP)

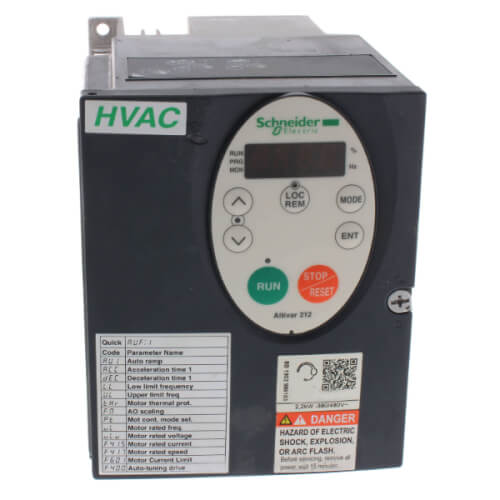

Note: Image may not be exact representation of item.

The AHRI (Air-Conditioning, Heating, & Refrigeration Institute) certified Altivar 212 drive is for use with three-phase asynchronous and permanent magnet motors for variable torque pump, fan, and scroll compressor applications. Select the Altivar 212 drive using the motor nameplate voltage, the full load ampere rating and the table below. The Altivar 212 drive includes 3 logic inputs, 2 analog inputs, 1 analog output, and 2 relay outputs (with 1 NO and 1 NO/NC contacts). The Altivar 212 drive includes an integrated 4 digit, 7 segment LED display with a 7 button keypad and includes an RJ45 Modbus port plus a four-screw terminal block for BACnet, Modbus, Metasys N2 and Apogee P1 communication protocols. LonWorks is available in an option card.

Specifications:

• Range of Product: Altivar 212
• Product Type: Variable speed drive
• Device Short Name: ATV212
• Product Destination: Asynchronous motors
• Product Specific Application: Pumps and fans in HVAC
• Assembly style: With heat sink
• Phases: 3
• Motor Power: 7.5 kW
• Maximum Horse Power Rating: 10 hp
• [Us] rated supply voltage: 380-480 V - 15-10 %
• Supply Voltage Limits: 323-528 V
• Supply Frequency: 50-60 Hz - 5-5 %
• Network frequency: 47.5-63 Hz
• EMC filter: Class C2 EMC filter integrated
• Line current: 11.7 A 480 V, 14.7 A 380 V
