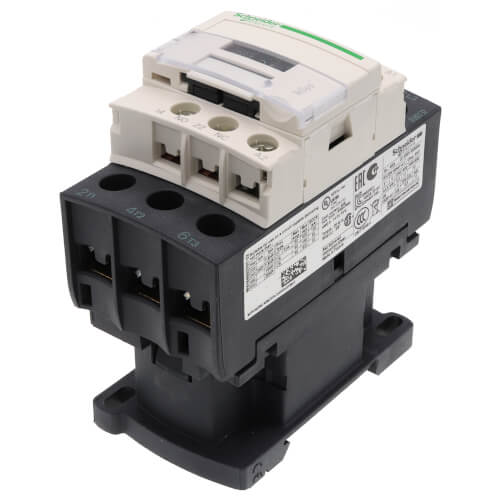

3 Pole N/O Definite Purpose Contactor, 25A (110V)

The LC1D25F7 is a TeSys D 3-pole Contactor with 3NO power pole and 1NO-1NC auxiliary contacts. TeSys D contactor is designed for perfect integration in control systems. It can be used to create motor starters for any type of application.

• AC-1 and AC-3 utilization category
• Rated operational voltage of 690VAC at 25Hz to 400Hz and 300VDC for power circuit
• Rated operational current of 40A at <440VAC (AC-1) & 25A at <440VAC (AC-3) for power circuit
• 11kW at 415VAC to 440VAC, 50Hz/60Hz Motor power
• 120VAC at 50Hz/60Hz Control circuit voltage
• UL94V-1 Flammability rating
• -5 to 60°C Ambient operating temperature range
• IP2x front face conforming to IEC 60529 standard protection rating
• 3.2W (AC-1) and 1.25W (AC-3) Power dissipation per pole
• Rated breaking capacity of 450A at 440V for power circuit conforming to IEC 60947 standard
