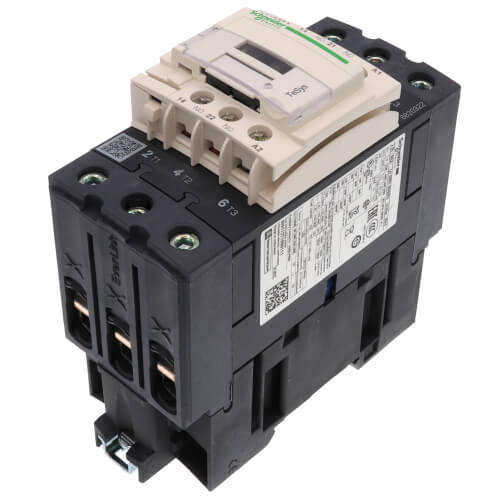

TeSys D Non-Reversing Contactor (50A Inductive/80A Resistive, 110V AC Coil, 3P)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$300.00 each
In Stock
Get 5 Fri, Jun 12
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
80 Amps
Normally Open
110v
18 Month Warranty
Description
–
TeSys D Non-Reversing Contactor (50A Inductive/80A Resistive, 110V AC Coil, 3P)
Specifications:
Specifications:
- Range: TeSys
- Product or Component Type: Contactor
- Contactor Application: Motor Control, Resistive Load
- Utilisation Category: AC-1, AC-4, AC-3
- Poles: 3
- Power Pole Contact Composition: 3 NO
- [Ue] Rated Operational Voltage: Power Circuit: <= 690 V AC 25...400 Hz, Power Circuit: <= 300 V DC
- [Ie] Rated Operational Current: 50 A (at <60 °C) at <= 440 V AC AC-3 for Power Circuit, 80 A (at <60 °C) at <= 440 V AC AC-1 for Power Circuit
- Motor Power kW: 15 kW at 220...230 V AC 50/60 Hz (AC-3), 22 kW at 380...400 V AC 50/60 Hz (AC-3), 30 kW at 500 V AC 50/60 Hz (AC-3), 33 kW at 660...690 V AC 50/60 Hz (AC-3), 25 kW at 415 V AC 50/60 Hz (AC-3), 30 kW at 440 V AC 50/60 Hz (AC-3), 11 kW at 400 V AC 50/60 Hz (AC-4)
- Motor Power HP (UL / CSA): 3 hp at 115 V AC 50/60 Hz for 1 Phase Motors, 7.5 hp at 230/240 V AC 50/60 Hz for 1 Phase Motors, 15 hp at 200/208 V AC 50/60 Hz for 3 Phase Motors, 15 hp at 230/240 V AC 50/60 Hz for 3 Phase Motors, 40 hp at 460/480 V AC 50/60 Hz for 3 Phase Motors, 40 hp at 575/600 V AC 50/60 Hz for 3 Phase Motors
- Control Circuit Type: AC at 50/60 Hz
- [Uc] Control Circuit Voltage: 110 V AC 50/60 Hz
- Auxiliary Contact Composition: 1 NO + 1 NC
- [Uimp] Rated Impulse Withstand Voltage: 6 kV Conforming to IEC 60947
- Overvoltage Category: III
- [Ith] Conventional Free Air Thermal Current: 10 A (at 60 °C) for Signalling Circuit, 80 A (at 60 °C) for Power Circuit
- Irms Rated Making Capacity: 140 A AC for Signalling Circuit Conforming to IEC 60947-5-1, 250 A DC for Signalling Circuit Conforming to IEC 60947-5-1, 900 A at 440 V for Power Circuit Conforming to IEC 60947
- Rated Breaking Capacity: 900 A at 440 V for Power Circuit Conforming to IEC 60947
- [Icw] Rated Short-Time Withstand Current: 400 A 40 °C - 10 s for Power Circuit, 810 A 40 °C - 1 s for Power Circuit, 84 A 40 °C - 10 min for Power Circuit, 208 A 40 °C - 1 min for Power Circuit, 100 A - 1 s for Signalling Circuit, 120 A - 500 ms for Signalling Circuit, 140 A - 100 ms for Signalling Circuit
- Associated Fuse Rating: 10 A gG for Signalling Circuit Conforming to IEC 60947-5-1, 100 A gG at <= 690 V Coordination Type 1 for Power Circuit, 100 A gG at <= 690 V Coordination Type 2 for Power Circuit
- Average Impedance: 1.5 mOhm - Ith 80 A 50 Hz for Power Circuit
- [Ui] Rated Insulation Voltage: Power Circuit: 600 V CSA Certified, Power Circuit: 600 V UL Certified, Signalling Circuit: 690 V Conforming to IEC 60947-1, Signalling Circuit: 600 V CSA Certified, Signalling Circuit: 600 V UL Certified, Power Circuit: 690 V Conforming to IEC 60947-4-1
- Electrical Durability: 1.45 Mcycles 50 A AC-3 at Ue <= 440 V, 1.1 Mcycles 80 A AC-1 at Ue <= 440 V
- Power Dissipation Per Pole: 3.7 W AC-3, 9.6 W AC-1
- Safety Cover: With
- Mounting Support: Rail, Plate
- Connections - Terminals: Control Circuit: Screw Clamp Terminals 2 Cable(s) 1…2.5 mm² Flexible with Cable End, Control Circuit: Screw Clamp Terminals 1 Cable(s) 1…4 mm² Flexible without Cable End, Control Circuit: Screw Clamp Terminals 2 Cable(s) 1…4 mm² Flexible without Cable End, Control Circuit: Screw Clamp Terminals 1 Cable(s) 1…4 mm² Flexible with Cable End, Control Circuit: Screw Clamp Terminals 1 Cable(s) 1…4 mm² Solid without Cable End, Control Circuit: Screw Clamp Terminals 2 Cable(s) 1…4 mm² Solid without Cable End, Power Circuit: Screw Connection 1 Cable(s) 1…35 mm² Flexible without Cable End, Power Circuit: Screw Connection 2 Cable(s) 1…25 mm² Flexible without Cable End, Power Circuit: Screw Connection 1 Cable(s) 1…35 mm² Flexible with Cable End, Power Circuit: Screw Connection 2 Cable(s) 1…25 mm² Flexible with Cable End, Power Circuit: Screw Connection 1 Cable(s) 1…35 mm² Solid without Cable End, Power Circuit: Screw Connection 2 Cable(s) 1…25 mm² Solid without Cable End
- Tightening Torque: Control Circuit: 1.7 N.m - on Screw Clamp Terminals - with Screwdriver Flat Ø 6 mm, Control Circuit: 1.7 N.m - on Screw Clamp Terminals - with Screwdriver Philips No 2 Power Circuit: 8 N.m - on EverLink BTR Screw Connectors - cable 25…35 mm² Hexagonal Screw Head 4 mm, Power Circuit: 5 N.m - on EverLink BTR Screw Connectors - Cable 1…25 mm² Hexagonal Screw Head 4 mm
- Operating Time: 4...19 ms Opening, 12...26 ms Closing
- Safety Reliability Level: B10d = 1369863 Cycles Contactor with Nominal Load Conforming to EN/ISO 13849-1, B10d = 20000000 Cycles Contactor with Mechanical Load Conforming to EN/ISO 13849-1
- Mechanical Durability: 6 Mcycles
- Maximum Operating Rate: 3600 cyc/h 60 °C
- Coil Technology: Without Built-in Suppressor Module
- Control Circuit Voltage Limits: Drop-out: 0.3...0.6 Uc AC 50/60 Hz (at 60 °C), Operational: 0.8...1.1 Uc AC 50 Hz (at 60 °C), Operational: 0.85...1.1 Uc AC 60 Hz (at 60 °C)
- Inrush Power in VA: 140 VA 60 Hz cos phi 0.75 (at 20 °C), 160 VA 50 Hz cos phi 0.75 (at 20 °C)
- Hold-in Power Consumption in VA: 13 VA 60 Hz cos phi 0.3 (at 20 °C), 15 VA 50 Hz cos phi 0.3 (at 20 °C)
- Heat Dissipation: 4…5 W at 50/60 Hz
- Auxiliary Contacts Type: Type Mechanically Linked 1 NO + 1 NC Conforming to IEC 60947-5-1, Type Mirror Contact 1 NC Conforming to IEC 60947-4-1
- Signalling Circuit Frequency: 25...400 Hz
- Minimum Switching Current: 5 mA for Signalling Circuit
- Minimum Switching Voltage: 17 V for Signalling Circuit
- Non-Overlap Time: 1.5 ms on De-energisation between NC and NO Contact, 1.5 ms on Energisation between NC and NO Contact
- Insulation Resistance: > 10 MOhm for Signalling Circuit
- Ambient Air Temperature for Operation: -5…60 °C
- Ambient Air Temperature for Storage: -60…80 °C
- permissible Ambient Air Temperature around the Device: -40…70 °C at Uc
- Operating Altitude: 3000 m Without
- Fire Resistance: 850 °C Conforming to IEC 60695-2-1
- Warranty: 18 Months
