3 Pole NO/NC Magnetic Contactor, 50A (120V)

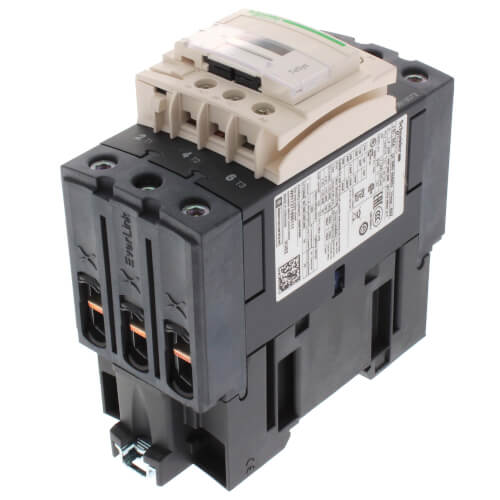

The LC1D50AG7 is a 3-pole TeSys D Contactor with SPST-NO, SPST-NC contact, screw clamp terminals and safety cover. The TeSys D contactor offers quick simple setup, while maintaining a compact size of 45 and 55mm (40 to 65A) as well as compliance with international standards. From 40 to 65A versions are equipped with EverLink, this new patented terminal technology, assures a permanent tightening quality even in the event of conductor creep. The TeSys D contactor has been designed for perfect integration in control systems.

• AC 50/60Hz control circuit type
• 6kV Rated impulse withstand voltage
• 1.50m at 50Hz Average impedance
• 5mA for signaling circuit Minimum switching current
• 17V for signaling circuit Minimum switching voltage
• >10M for signaling circuit Insulation resistance
• IP2x Protection rating
• Action: Nonreversing
• Hz: 50/60
• Enclosure NEMA Rating: No Enclosure
• Item: IEC Magnetic Contactor
• Auxiliary Contact Form: 1NC/1NO
• Number of Poles: 3
• Coil Volts: 120VAC
• Width: 2.17"
• HP @ 3 Phase - 575V: 40
• HP @ 3 Phase - 480V: 40
• HP @ 3 Phase - 240V: 15
• HP @ 3 Phase - 208V: 15
• HP @ 1 Phase - 230V: 7-1/2
• HP @ 1 Phase - 120V: 3
• Height: 2.17"
• Standards: UL, CSA, CE
• Depth: 4.61"
• Full Load Amps-Resistive: 80
• Full Load Amps-Inductive: 50
