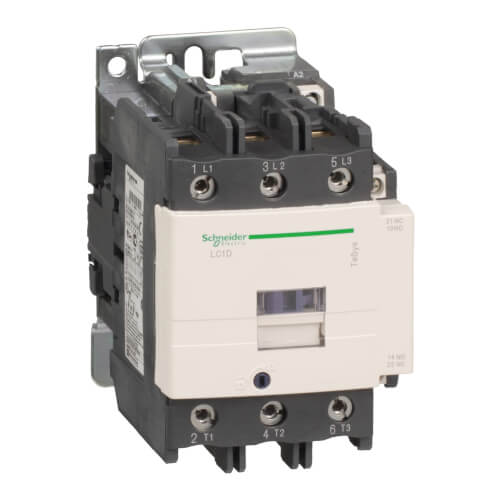

TeSys D Non-Reversing Contactor (80A Inductive/125A Resistive, 240V AC Coil, 3P)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$609.02 each
In Stock
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
125 Amps
Normally Open
240v
18 Month Warranty
Description
–
TeSys D Non-Reversing Contactor (80A Inductive/125A Resistive, 240V AC Coil, 3P)
Specifications:
Specifications:
- Range: TeSys
- Product or Component Type: Contactor
- Contactor Application: Motor Control, Resistive Load
- Utilisation Category: AC-1, AC-4, AC-3
- Poles: 3
- Power Pole Contact Composition: 3 NO
- [Ue] Rated Operational Voltage: Power Circuit <= 300 V DC 25...400 Hz, Power Circuit <= 690 V AC
- [Ie] Rated Operational Current: 125 A 140 °F (60 °C)) <= 440 V AC AC-1 Power Circuit, 80 A 140 °F (60 °C)) <= 440 V AC AC-3 Power Circuit
- Motor Power kW: 22 kW 220...230 V AC 50/60 Hz AC-3), 37 kW 380...400 V AC 50/60 Hz AC-3), 45 kW 415...440 V AC 50/60 Hz AC-3), 55 kW 500 V AC 50/60 Hz AC-3), 45 kW 660...690 V AC 50/60 Hz AC-3), 45 kW 1000 V AC 50/60 Hz AC-3), 15 kW 400 V AC 50/60 Hz AC-4)
- Motor Power HP (UL / CSA): 20 hp 200/208 V AC 50/60 Hz 3 Phase, 7.5 hp 115 V AC 50/60 Hz 1 Phase, 15 hp 230/240 V AC 50/60 Hz 1 Phase, 25 hp 230/240 V AC 50/60 Hz 3 Phase, 60 hp 460/480 V AC 50/60 Hz 3 Phase, 60 hp 575/600 V AC 50/60 Hz 3 Phase
- Control Circuit Type: AC 50/60 Hz
- [Uc] Control Circuit Voltage: 240 V AC 50/60 Hz
- Auxiliary Contact Composition: 1 NO + 1 NC
- [Uimp] Rated Impulse Withstand Voltage: 8 kV IEC 60947
- Overvoltage Category: III
- [Ith] Conventional Free Air Thermal Current: 10 A 140 °F (60 °C) Signalling Circuit, 125 A 140 °F (60 °C) Power Circuit
- Irms Rated Making Capacity: 140 A AC Signalling Circuit IEC 60947-5-1, 250 A DC Signalling Circuit IEC 60947-5-1, 1100 A 440 V Power Circuit IEC 60947
- Rated Breaking Capacity: 1100 A 440 V Power Circuit IEC 60947
- [Icw] Rated Short-Time Withstand Current: 640 A 104 °F (40 °C) - 10 s Power Circuit, 990 A 104 °F (40 °C) - 1 s Power Circuit, 135 A 104 °F (40 °C) - 10 min Power Circuit, 320 A 104 °F (40 °C) - 1 min Power Circuit, 100 A - 1 s Signalling Circuit, 120 A - 500 ms Signalling Circuit, 140 A - 100 ms Signalling Circuit
- Associated Fuse Rating: 10 A gG Signalling Circuit IEC 60947-5-1, 200 A gG <= 690 V Type 1 Power Circuit, 160 A gG <= 690 V Type 2 Power Circuit
- Average Impedance: 0.8 mOhm - Ith 125 A 50 Hz Power Circuit
- [Ui] Rated Insulation Voltage: Power Circuit 600 V CSA, Power Circuit 600 V UL, Power Circuit 1000 V IEC 60947-4-1, Signalling Circuit 690 V IEC 60947-1, Signalling Circuit 600 V CSA, Signalling Circuit 600 V UL
- Electrical Durability: 0.8 Mcycles 125 A AC-1 <= 440 V, 1.5 Mcycles 80 A AC-3 <= 440 V
- Power Dissipation Per Pole: 5.1 W AC-3, 12.5 W AC-1
- Safety Cover: With
- Mounting Support: Plate, Rail
- Connections - Terminals: Control Circuit Screw Clamp Terminals 2 0.00…0.00 in² (1…2.5 mm²) Flexible with Cable End, Control Circuit Screw Clamp Terminals 1 0.00…0.00 in² (1…2.5 mm² Flexible with Cable End, Control Circuit Screw Clamp Terminals 1 0.00…0.01 in² (1…4 mm²) Flexible without Cable End, Control Circuit Screw Clamp Terminals 2 0.00…0.01 in² (1…4 mm²) Flexible without Cable End, Control Circuit Screw Clamp Terminals 1 0.00…0.01 in² (1…4 mm²) Solid without Cable End, Control Circuit Screw Clamp Terminals 2 0.00…0.01 in² (1…4 mm²) Solid without Cable End, Power Circuit Connector 1 0.01…0.08 in² (4…50 mm²) Flexible without Cable End, Power Circuit Connector 2 0.01…0.04 in² (4…25 mm²) Flexible without Cable End, Power Circuit Connector 1 0.01…0.08 in² (4…50 mm²) Flexible with Cable End, Power Circuit Connector 2 0.01…0.02 in² (4…16 mm²) Flexible with Cable End, Power Circuit Connector 1 0.01…0.08 in² (4…50 mm²) Solid without Cable End, Power Circuit Connector 2 0.01…0.04 in² (4…25 mm²) Solid without Cable End
- Tightening Torque: Control Circuit 10.62 lbf.in (1.2 N.m) Screw Clamp Terminals Flat Ø 6 mm, Control Circuit 10.62 lbf.in (1.2 N.m) Screw Clamp Terminals Philips No 2, Power Circuit 79.66 lbf.in (9 N.m) Connector Flat Ø 6 to Ø 8 mm, Power Circuit 79.66 lbf.in (9 N.m) Connector Hexagonal 0.16 in (4 mm)
- Operating Time: 20...35 ms Closing, 6...20 ms Opening
- Safety Reliability Level: B10d = 1369863 Cycles Contactor with Nominal Load EN/ISO 13849-1, B10d = 20000000 Cycles Contactor with Mechanical Load EN/ISO 13849-1
- Mechanical Durability: 4 Mcycles
- Maximum Operating Rate: 3600 cyc/h 140 °F (60 °C)
- Coil Technology: Without Built-in Suppressor Module
- Control Circuit Voltage Limits: Operational 0.85...1.1 Uc AC 60 Hz 131 °F (55 °C), Drop-out 0.3...0.6 Uc AC 50/60 Hz 131 °F (55 °C), Operational 0.8...1.1 Uc AC 50 Hz 131 °F (55 °C)
- Inrush Power in VA: 245 VA 60 Hz 0.75 68 °F (20 °C), 245 VA 50 Hz 0.75 68 °F (20 °C)
- Hold-in Power Consumption in VA: 26 VA 60 Hz 0.3 68 °F (20 °C), 26 VA 50 Hz 0.3 68 °F (20 °C)
- Heat Dissipation: 6…10 W 50/60 Hz
- Auxiliary Contacts Type: Mechanically Linked 1 NO + 1 NC IEC 60947-5-1, Mirror Contact 1 NC IEC 60947-4-1
- Signalling Circuit Frequency: 25...400 Hz
- Minimum Switching Current: 5 mA Signalling Circuit
- Minimum Switching Voltage: 17 V Signalling Circuit
- Non-Overlap Time: 1.5 ms on De-energisation between NC and NO Contact, 1.5 ms on Energisation between NC and NO Contact
- Insulation Resistance: > 10 MOhm Signalling Circuit
- IP Degree of Protection: IP20 Front Face IEC 60529
- Ambient Air Temperature for Operation: 23…140 °F (-5…60 °C)
- Ambient Air Temperature for Storage: -76…176 °F (-60…80 °C)
- Permissible Ambient Air Temperature around the Device: -40…158 °F (-40…70 °C) at Uc
- Operating Altitude: 9842.52 ft (3000 m) Without
- Fire Resistance: 1562 °F (850 °C) IEC 60695-2-1
- Warranty: 18 Months
