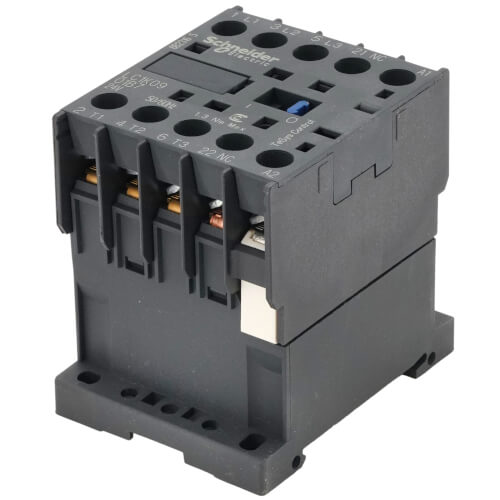

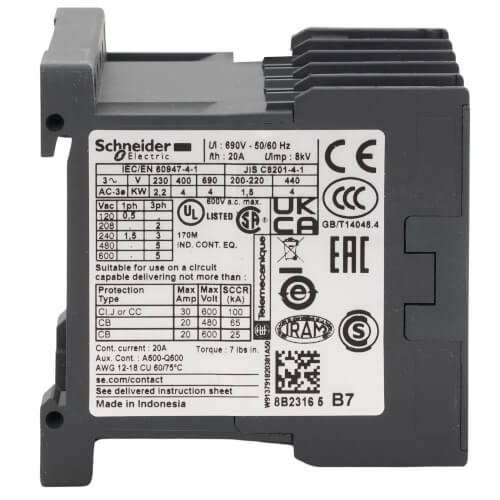

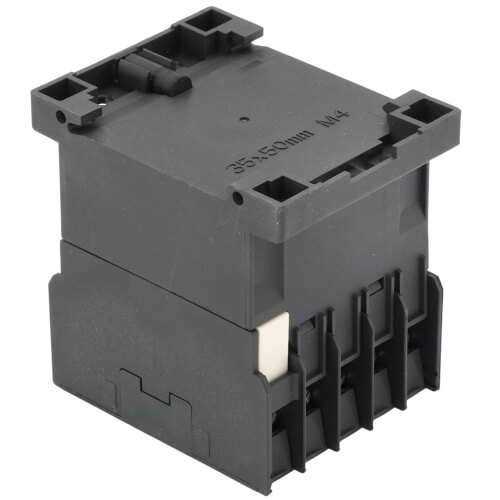

TeSys K Mini IEC Non-Reversing Contactor (9A Inductive/20A Resistive, 24V Coil, 3P)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$87.42 each
In Stock
Get 1 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
20 Amps
24V
Normally Open
18 Month Warranty
Description
–
TeSys K Mini IEC Non-Reversing Contactor (9A Inductive/20A Resistive, 24V Coil, 3P)
Specifications:
Specifications:
- Range: TeSys
- Product or Component Type: Contactor
- Device Application: Control
- Contactor Application: Resistive Load, Motor Control
- Utilisation Category: AC-3, AC-4, AC-1
- Poles: 3
- Power Pole Contact Composition: 3 NO
- [Ue] Rated Operational Voltage: Power Circuit 690 V AC 50/60 Hz, Signalling Circuit <= 690 V AC 50/60 Hz
- [Ie] Rated Operational Current: 20 A 122 °F (50 °C)) <= 440 V AC AC-1 Power Circuit, 9 A<= 440 V AC AC-3 Power Circuit, 16 A 158 °F (70 °C)) 690 V AC AC-1 Power Circuit
- Control Circuit Type: AC 50/60 Hz
- [Uc] Control Circuit Voltage: 24 V AC 50/60 Hz
- Motor Power kW: 2.2 kW 220...230 V AC 50/60 Hz AC-3, 4 kW 380...415 V AC 50/60 Hz AC-3, 4 kW 440 V AC 50/60 Hz AC-3, 4 kW 480 V AC 50/60 Hz AC-3, 4 kW 500...600 V AC 50/60 Hz AC-3, 4 kW 660...690 V AC 50/60 Hz AC-3, 2.2 kW 400 V AC 50/60 Hz AC-4
- Auxiliary Contact Composition: 1 NC
- [Uimp] Rated Impulse Withstand Voltage: 8 kV
- Overvoltage Category: III
- [Ith] Conventional Free Air Thermal Current: 20 A 122 °F (50 °C) Power Circuit, 10 A 122 °F (50 °C) Signalling Circuit
- Irms Rated Making Capacity: 110 A AC Power Circuit NF C 63-110, 110 A AC Power Circuit IEC 60947, 110 A AC Signalling Circuit IEC 60947
- Rated Breaking Capacity: 110 A 415 V IEC 60947, 110 A 440 V IEC 60947, 80 A 500 V IEC 60947, 110 A 220...230 V IEC 60947, 110 A 380...400 V IEC 60947, 70 A 660...690 V IEC 60947
- [Icw] Rated Short-Time Withstand Current: 90 A 122 °F (50 °C) - 1 s Power Circuit, 85 A 122 °F (50 °C) - 5 s Power Circuit, 80 A 122 °F (50 °C) - 10 s Power Circuit, 60 A 122 °F (50 °C) - 30 s Power Circuit, 45 A 122 °F (50 °C) - 1 min Power Circuit, 40 A 122 °F (50 °C) - 3 min Power Circuit, 20 A 122 °F (50 °C) - >= 15 min Power Circuit, 80 A - 1 s Signalling Circuit, 90 A - 500 ms Signalling Circuit, 110 A - 100 ms Signalling Circuit
- Associated Fuse Rating: 25 A gG <= 440 V Power Circuit, 25 A aM Power Circuit, 10 A gG Signalling Circuit IEC 60947, 10 A gG Signalling Circuit VDE 0660
- Average Impedance: 3 mOhm - Ith 20 A 50 Hz Power Circuit
- [Ui] Rated Insulation Voltage: Power Circuit 600 V UL 508, Power Circuit 690 V IEC 60947-4-1, Signalling Circuit 690 V IEC 60947-4-1, Signalling Circuit 690 V IEC 60947-5-1, Signalling Circuit 600 V UL 508, Power Circuit 600 V CSA C22.2 No 14, Signalling Circuit 600 V CSA C22.2 No 14
- Insulation Resistance: > 10 MOhm Signalling Circuit
- Inrush Power in VA: 30 VA 68 °F (20 °C)
- Hold-in Power Consumption in VA: 4.5 VA 68 °F (20 °C)
- Heat Dissipation: 1.3 W
- Control Circuit Voltage Limits: Operational 0.8...1.15 Uc 122 °F (50 °C), Drop-out 0.2...0.75 Uc 122 °F (50 °C)
- Maximum Operating Rate: 3600 cyc/h
- Signalling Circuit Frequency: <= 400 Hz
- Minimum Switching Current: 5 mA Signalling Circuit
- Minimum Switching Voltage: 17 V Signalling Circuit
- Mounting Support: Plate, Rail
- Tightening Torque: 11.51 lbf.in (1.3 N.m) Screw Clamp Terminals Philips No 2, 11.51 lbf.in (1.3 N.m) Screw Clamp Terminals Flat Ø 6 mm
- Operating Time: 10...20 ms Coil De-energisation and NO Opening, 10...20 ms Coil Energisation and NO Closing
- Mechanical Durability: 10 Mcycles
- Ambient Air Temperature for Storage: -58…176 °F (-50…80 °C)
- Operating Altitude: Operating Altitude 6561.68 ft (2000 m) Without
- Flame Retardance: V1 UL 94, Requirement 2 NF F 16-101, Requirement 2 NF F 16-102
- Warranty: 18 Months
Specs
–
| Amperage: | 20 |
|---|---|
| Product Type: | Contactor |
| Inductive: | 9A |
| Resistive: | 20 A |
| Voltage: | 24V |
| Poles: | 3 |
| Position: | Normally Open |
| Warranty: | 18 Month |
