8 Amps
Description
–

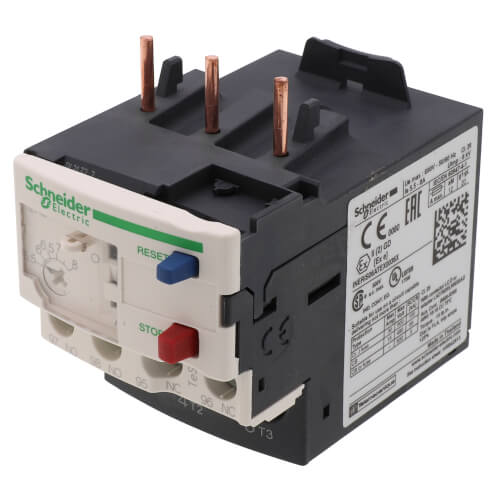

TeSys LRD Thermal Overload Relay (5.5-8A, Class 20, 3P)
Specifications:
Specifications:
- Range: TeSys
- Product or Component Type: Differential Thermal Overload Relay
- Relay Application: Motor protection
- Product Compatibility: LC1D09, LC1D32, LC1D18, LC1D25, LC1D38, LC1D12
- Network Type: AC, DC
- Thermal Protection Adjustment Range: 5.5…8 A
- [Ui] Rated Insulation Voltage: Power Circuit 600 V CSA, Power Circuit 600 V UL, Power Circuit 690 V IEC 60947-4-1
- Network Frequency: 0...400 Hz
- Mounting Support: Plate, with Specific Accessories, Rail, with Specific Accessories, under Contactor
- Tripping Threshold: 1.14 +/- 0.06 Ir IEC 60947-4-1
- [Ith] Conventional Free Air Thermal Current: 5 A Signalling Circuit
- Permissible Current: 3 A 120 V AC-15 Signalling Circuit, 0.22 A 125 V DC-13 Signalling Circuit
- [Ue] Rated Operational Voltage: 690 V AC 0...400 Hz
- Associated Fuse Rating: 12 A aM, 20 A gG, 20 A BS88
- [Uimp] Rated Impulse Withstand Voltage: 6 kV
- Phase Failure Sensitivity: Tripping Current 130 % of Ir on Two Phase, the Last One at 0
- Control Type: Red Push-Button Stop, Blue Push-Button Reset
- Temperature Compensation: -4…140 °F (-20…60 °C)
- Connections - Terminals: Control Circuit Screw Clamp Terminals 2 0.00…0.00 in² (1…2.5 mm²) Flexible without Cable End, Control Circuit Screw Clamp Terminals 2 0.00…0.00 in² (1…2.5 mm²) Flexible with Cable End, Control Circuit Screw Clamp Terminals 2 0.00…0.00 in² (1…2.5 mm²) Solid without Cable End, Power Circuit Screw Clamp Terminals 1 0.00…0.02 in² (1.5…10 mm²) Flexible without Cable End, Power Circuit Screw Clamp Terminals 1 0.00…0.01 in² (1…4 mm²) Flexible with Cable End, Power Circuit Screw Clamp Terminals 1 0.00…0.01 in² (1…6 mm²) Solid without Cable End
- Tightening Torque: Control Circuit 15.05 lbf.in (1.7 N.m) Screw Clamp Terminals, Power Circuit 15.05 lbf.in (1.7 N.m) Screw Clamp Terminals
- Protective Treatment: TH IEC 60068
- IP Degree of Protection: IP20 IEC 60529
- Ambient Air Temperature for Operation: -4…140 °F (-20…60 °C) without Derating IEC 60947-4-1
- Ambient Air Temperature for Storage: -76…158 °F (-60…70 °C)
- Mechanical Robustness: Shocks 15 Gn for 11 ms IEC 60068-2-7, Vibrations 3 Gn IEC 60068-2-6
- Dielectric Strength: 6 kV 50 Hz IEC 60255-5
- Standards: CSA C22.2 No 14, EN 60947-5-1, ATEX D 94/9/CE, EN 60947-4-1, UL 508, IEC 60947-5-1, IEC 60947-4-1,
- Product Certifications: UL, EAC, CSA, ABS, ATEX INERIS
Specs
–
| Amperage: | 8 |
|---|---|
| Product Type: | Overload Relay |
| Overload Protection: | Thermally |
| Poles: | 3 |
