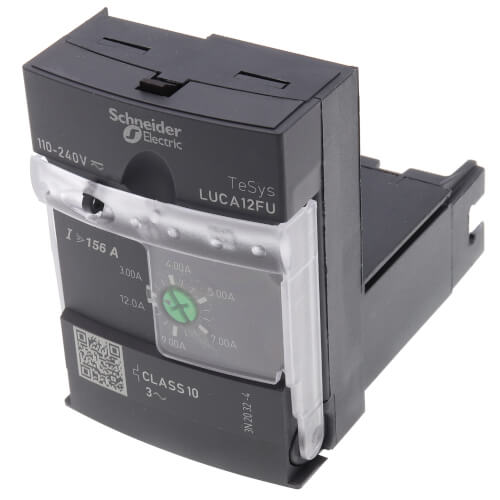

TeSys U Motor Starter Overload Relay Standard Control Unit (3-12A, 110-220V DC/AC, Class 10)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$132.29 each
In Stock
Get 3 Fri, Jun 12
Order by today, receive Friday
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
110-220V
12 Amps
18 Month Warranty
Description
–
TeSys U Motor Starter Overload Relay Standard Control Unit (3-12A, 110-220V DC/AC, Class 10)
Specifications:
Specifications:
- Range: TeSys
- Product Name: TeSys U
- Product or Component Type: Standard Control Unit
- Product Specific Application: Basic Protection Requirements for Motor Starters: Overload and Short-Circuit
- Product Compatibility: LUFN.., LUFC00
- Utilisation Category: AC-41, AC-44, AC-43
- Motor Power kW: 9 kW 690 V AC 50/60 Hz, 5.5 kW 400...440 V AC 50/60 Hz, 5.5 kW 500 V AC 50/60 Hz
- Thermal Protection Adjustment Range: 3…12 A
- [Uc] Control Circuit Voltage: 110...220 V DC, 110...240 V AC
- Thermal Overload Class: Class 10 40…60 Hz -13…158 °F (-25…70 °C) IEC 60947-6-2, Class 10 40…60 Hz -13…158 °F (-25…70 °C) UL 508, Class 20 40…60 Hz -13…158 °F (-25…70 °C) IEC 60947-6-2, Class 20 40…60 Hz -13…158 °F (-25…70 °C) UL 508
- Main Function Available: Earth Fault Protection, Manual Reset, Protection against Phase Failure and Phase Imbalance, Protection against Overload and Short-Circuit
- Mounting Mode: Plug-in
- Mounting Location: Front Side
- Control Circuit Voltage Limits: 88...242 V DC 110...220 V in Operation, 88...264 V AC 110...240 V in Operation
- Typical Current Consumption: 25 mA 110...240 V AC I rms sealed with LUB12, 25 mA 110...240 V AC I rms sealed with LUB32, 280 mA 110...220 V DC I maximum while closing with LUB12, 280 mA 110...220 V DC I maximum while closing with LUB32, 280 mA 110...240 V AC I maximum while closing with LUB12, 280 mA 110...240 V AC I maximum while closing with LUB32, 35 mA 110...220 V DC I rms sealed with LUB12, 35 mA 110...220 V DC I rms sealed with LUB32
- Operating Time: 35 ms Opening with LUB12 Control Circuit, 35 ms Opening with LUB32 Control Circuit, 50 ms Closing with LUB12 Control Circuit, 50 ms Closing with LUB32 Control Circuit
- Load Type: 3-Phase Motor Self-Cooled
- Tripping Threshold: 14.2 x Ir +/- 20 %
- [Ui] Rated Insulation Voltage: 600 V UL 508, 690 V IEC 60947-1, 600 V CSA C22.2 No 14
- [Uimp] Rated Impulse withstand Voltage: 6 kV IEC 60947-6-2
- Safe Separation of Circuit: 400 V SELV between the Control and Auxiliary Circuits IEC 60947-1, 400 V SELV between the Control or Auxiliary Circuit and the Main Circuit IEC 60947-1
- Heat Dissipation: 2 W control circuit with LUB12, 3 W Control Circuit with LUB32
- Immunity to Microbreaks: 3 ms
- Immunity to Voltage Dips: 70 % / 500 ms IEC 61000-4-11
- Standards: UL 508 type E, with Phase Barrier, EN 60947-6-2, IEC 60947-6-2, CSA C22.2 No 14 Type E
- IP Degree of Protection: IP20 Front Panel and Wired Terminals IEC 60947-1, IP20 Other Faces IEC 60947-1, IP40 Front Panel outside Connection Zone IEC 60947-1
- Protective Treatment: TH IEC 60068
- Ambient Air Temperature for Operation: -13…158 °F (-25…70 °C)
- Ambient Air Temperature for Storage: -40…185 °F (-40…85 °C)
- Operating Altitude: 6561.68 ft (2000 m)
- Fire Resistance: 1760 °F (960 °C) Parts Supporting Live Components IEC 60695-2-12, 1202 °F (650 °C) IEC 60695-2-12
- Shock Resistance: 10 gn Power Poles Open IEC 60068-2-27, 15 gn Power Poles Closed IEC 60068-2-27
- Vibration Resistance: 2 gn 5…300 Hz Power Poles Open IEC 60068-2-6, 4 gn 5…300 Hz Power Poles Closed IEC 60068-2-6
- Resistance to Electrostatic Discharge: 8 kV 3 in Open Air IEC 61000-4-2, 8 kV 4 on Contact IEC 61000-4-2
- Non-Dissipating Shock Wave: 1 kV Serial Mode IEC 60947-6-2, 2 kV Common Mode IEC 60947-6-2
- Resistance to Radiated Fields: 9.14 V/m (10 V/m) 3 IEC 61000-4-3
- Resistance to Fast Transients: 2 kV 3 Serial Link IEC 61000-4-4, 4 kV 4 All Circuits except for Serial Link IEC 61000-4-4
- Immunity to Radioelectric Fields: 10 V IEC 61000-4-6
- Warranty: 18 months
Specs
–
| Amperage: | 12 |
|---|---|
| Product Type: | Control Unit Overload Relay |
| Voltage: | 110-220V |
| Protection: | Against Overloads/Short-Circuits |
| Warranty: | 18 Month |
