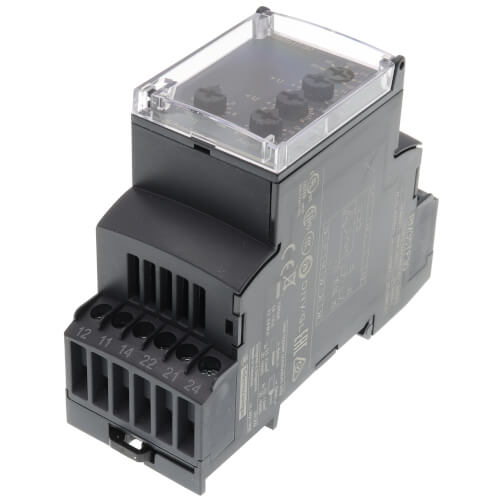

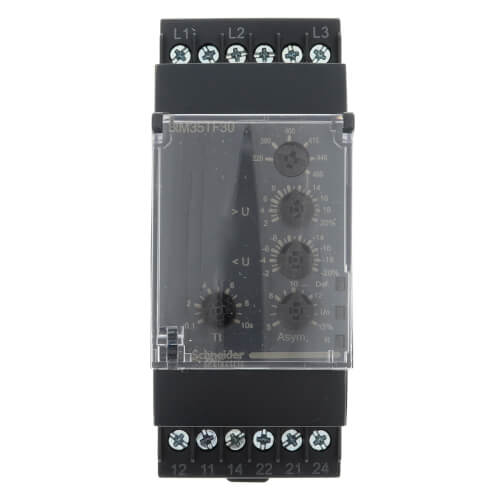

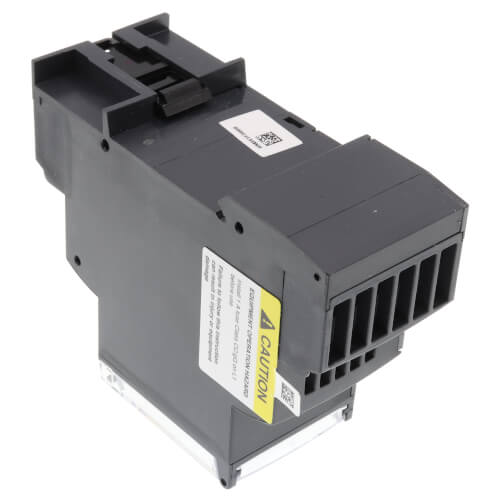

Zelio Supply Control Relay, 3 Phase (5A, 220-480V)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$252.03 each
In Stock
Get 3 Thu, Mar 20
More Available
Order by today, receive Thursday
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
220-480VAC
5 Amps
Description
–
Zelio Supply Control Relay, 3 Phase (5A, 220-480V)
Specifications:
Specifications:
- Range of Product: Zelio Control
- Product or Component Type: Modular Measurement and Control Relays
- Relay Type: Multifunction Control Relay
- Product Specific Application: For 3-Phase Supply
- Relay Monitored Parameters: Undervoltage and Overvoltage in Window Mode, Phase Sequence, Phase Failure Detection, Asymmetry
- Time Delay: Adjustable 0.1...10 s, +/- 10 % of the Full Scale Value
- Switching Capacity in VA: 1250 VA
- Measurement Range: 208...480 V voltage AC
- Reset Time: 1500 ms at 480 V
- Maximum Switching Voltage: 250 V AC, 250 V DC
- Minimum Switching Current: 10 mA 5 V DC
- Maximum Switching Current: 5 A AC, 5 A DC
- Supply Voltage Limits: 194…528 V AC, 3 Phase
- Control Circuit Voltage Limits: - 12 % + 10 % Un
- Power Consumption in VA: 0…22 VA 400 V AC 50 Hz
- Voltage Detection Threshold: < 194 V
- Control Circuit Frequency: 50...60 Hz +/- 10 %
- Output Contacts: 2 C/O
- Nominal Output Current: 5 A
- Measurement Voltage Limits: 176…528 V AC
- Hysteresis: 2 %
- Delay at Power Up: 650 ms
- Maximum Measuring Cycle: 140 ms Measurement Cycle as True rms Value
- Threshold Adjustment Voltage: -20...-2 % in the range 380...480 V AC, 2...20 % of Un selected, -12...-2 % in the range 220 V AC, +2...+20 % in the range 220...440 V AC, +2...+10 % in the range 480 V AC
- Voltage Range: 220...480 V Phase to Phase
- Adjustment of Asymmetry Threshold: 5...15 % of Un Selected
- Repeat Accuracy: 0.3 % Time Delay, 0.5 % Input and Measurement Circuit
- Measurement Error: < 1 % over the Whole Range with Voltage Variation, 0.05 %/°C with Temperature Variation
- Response Time: < 200 ms in the Event of a Fault)
- Marking: CE
- Overvoltage Category: III IEC 60664-1
- Insulation Resistance: > 500 MOhm 500 V DC IEC 60255-5, > 500 MOhm 500 V DC IEC 60664-1
- [Ui] Rated Insulation Voltage: 400 V IEC 60664-1
- Supply Frequency: 50/60 Hz +/- 10 %
- Operating Position: Any Position Without
- Connections - Terminals: Screw Terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) Solid without Cable End, Screw Terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) Solid without Cable End, Screw Terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) Flexible with Cable End, Screw Terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) Flexible with Cable End
- Tightening Torque: 5.31…8.85 lbf.in (0.6…1 N.m) IEC 60947-1
- Housing Material: Self-Extinguishing Plastic
- Local Signalling: Power ON LED green, Relay ON LED yellow, Fault LED yellow
- Mounting Support: 35 mm Symmetrical DIN Rail EN/IEC 60715
- Electrical Durability: 100000 Cycles
- Mechanical Durability: 30000000 Cycles
- Operating Rate: <= 360 Operations/Hour Full Load
- Utilisation Category: AC-12 IEC 60947-5-1, AC-13 IEC 60947-5-1, AC-14 IEC 60947-5-1, AC-15 IEC 60947-5-1, DC-12 IEC 60947-5-1, DC-13 IEC 60947-5-1
- Safety Reliability Data: MTTFd = 399.5 Years, B10d = 360000
- Electromagnetic Compatibility: Emission Standard for Industrial Environments EN/IEC 61000-6-4, Emission Standard for Residential, Commercial and Light-Industrial Environments EN/IEC 61000-6-3 Immunity for industrial environments EN/IEC 61000-6-2
- Standards: EN/IEC 60255-1
- Directives: 89/336/EEC - Electromagnetic Compatibility 73/23/EEC - Low Voltage Directive
- Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
- Ambient Air Temperature for Operation: -4…122 °F (-20…50 °C)
- Relative Humidity: 95 % 131 °F (55 °C) IEC 60068-2-30
- Vibration Resistance: 0.35 mm 5…57.6 Hz)IEC 60068-2-6, 1 gn 57.6…150 Hz)IEC 60255-21-1
- Shock Resistance: 15 gn 11 ms IEC 60255-21-1
- IP Degree of Protection: IP20 IEC 60529 terminals, IP30 IEC 60529 Casing)
- Pollution Degree: 3 IEC 60664-1
- Dielectric Test Voltage: 2 kV AC 50 Hz, 1 min
- Non-Dissipating Shock Wave: 4 kV
- Warranty: 18 Months
Specs
–
| Voltage: | 220-480VAC |
|---|---|
| Product Type: | Relay |
| Phase: | 3 |
| Amperage: | 5 |
| Hertz: | 50/60 |
