Cam & Disconnect Switch, Enclosed & Fused (690VAC, 3 Pole), 3.27" OAH x 2.36" OAW, VBF3

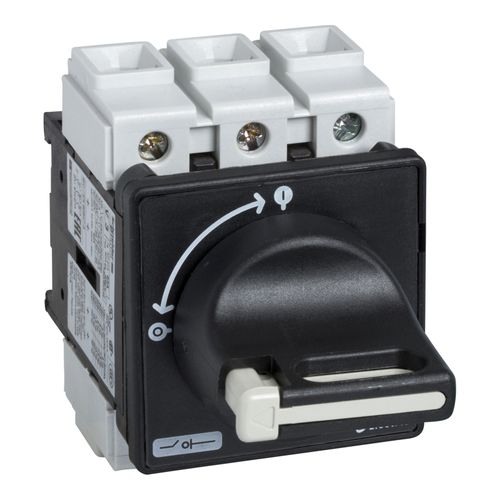

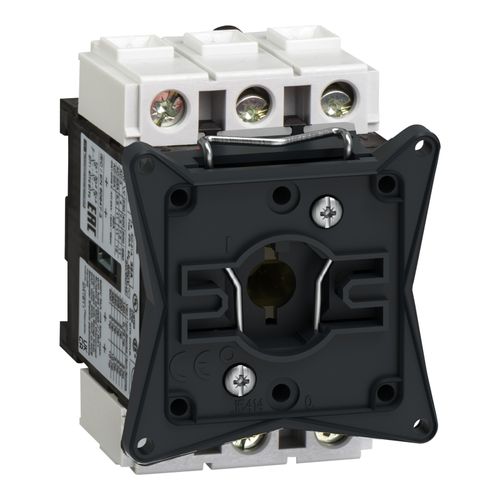

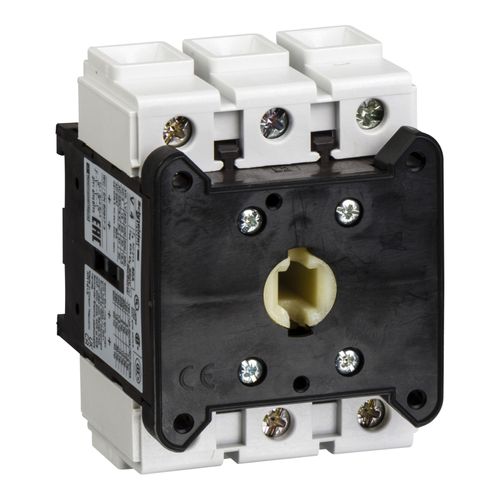

VBF3 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for main switching in motor applications 22kWat 400V AC-23. For door mounting with 4 screw fixing, it provides a black and grey operator with IP65 protection. VBF3 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for main switching in motor applications 22kWat 400V AC-23. It consists of a V3 Vario switch body and a padlockable black and grey operator to be mounted on door with 4 screws fixing. It ensures an IP65 protection to the mounting. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Vario 3-pole rotary switch disconnector for door mounting. Composed with a switch body V3 and a black and grey operator, for main switching, padlockable. Ensures an IP65 protection to the mounting. Rated for 690V AC operation, DC operation is permitted until 250V, performance depending on the number of contacts in series. Possible attachment of 4 add-on poles (2 in each side) , main (VZ3), neutral (VZ12), earthing (VZ15), auxiliary (VZ7, VZ20).

Features:

• Enclosure Type: Enclosed
• Fused: Fused
• Voltage: 690Vac
• Contact Form: 3NO
• Number Of Poles: 3
