Cam & Disconnect Switch, Enclosed (3 Phase, 3 Pole), 5-63/64" OAH x 4.8" OAW, VC2GUN

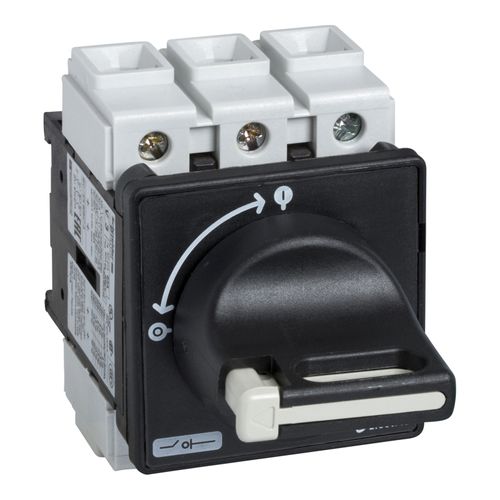

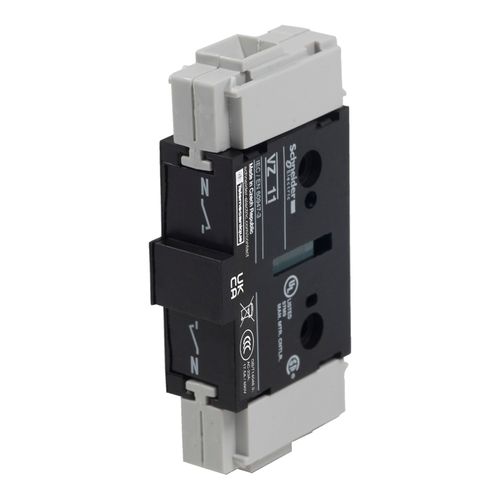

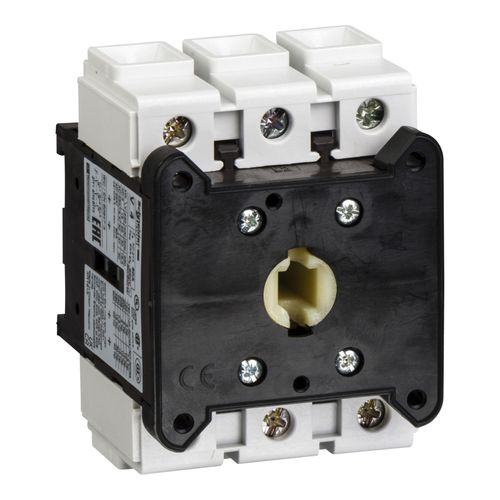

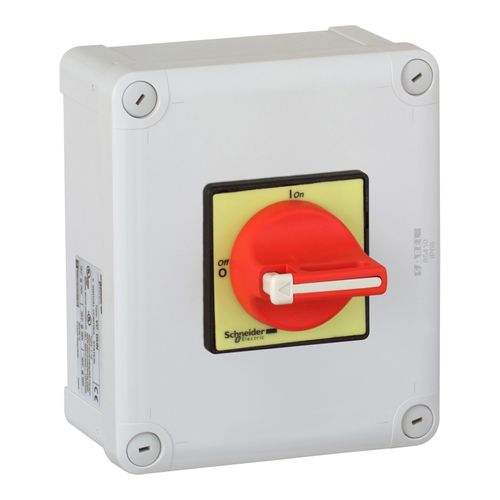

VC2GUN is a 3-pole TeSys Vario enclosed switch-disconnector from Schneider Electric for emergency stop switching in motor applications 15HPat 600V. It provides an IP65 / NEMA type 12 enclosure, V2 Vario switch disconnector and red and yellow operator. VC2GUN is a 3-pole TeSys Vario enclosed switch-disconnector from Schneider Electric for main and emergency stop switching in motor applications 15HPat 600V. It includes a V2 Vario switch disconnector rated 25A conforming UL/CSA. It provides an IP65 / NEMA type 12 enclosure with a red and yellow operator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC). Enclosed switch disconnector including a 3-pole switch-disconnector Vario V2 model. Conforming to IEC (IEC 60947-4-1, IEC 60204) and UL/CSA (UL 508 and CSA 22.2 ndegrees 14). NEMA type 12 enclosure rating, IP65 protection degree, sealable. Operating red handle for emergency stop, padlockable. Connections directly on the screw clamp terminals of the switch. Possible attachment of 2 add-on poles to the switch body , main (VZ2), neutral (VZ11), earthing (VZ14), auxiliary (VZ7, VZ20).

Features:

• Enclosure Type: Enclosed
• Number Of Poles: 3
• Overall Height (Decimal Inch): 6.5000
• Overall Height (Inch): 5-63/64
• Overall Width (Decimal Inch - 4 Decimals): 4.8000
