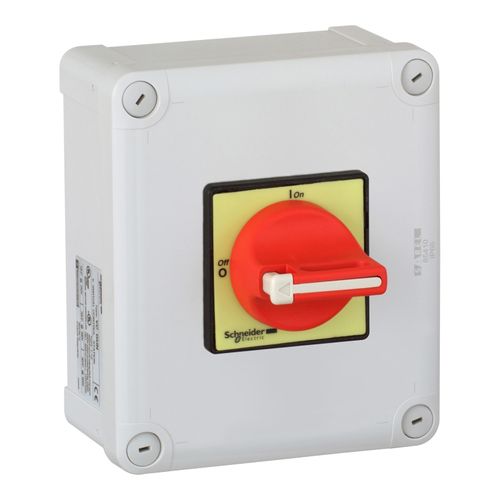

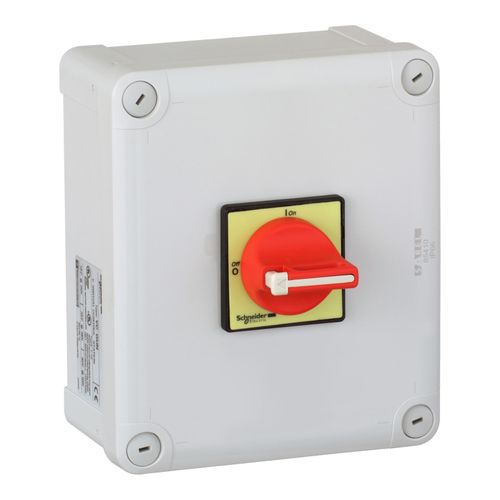

Cam & Disconnect Switch, Enclosed (3 Phase, 3 Pole), 7.6" OAH x 5-63/64" OAW, VC3GUN

VC3GUN is a 3-pole TeSys Vario enclosed switch-disconnector from Schneider Electric for emergency stop switching in motor applications 30HPat 600V. It provides an IP65 / NEMA type 12 enclosure, V3 Vario switch disconnector and red and yellow operator. VC3GUN is a 3-pole TeSys Vario enclosed switch-disconnector from Schneider Electric for main and emergency stop switching in motor applications 30HPat 600V. It includes a V3 Vario switch disconnector rated 45A conforming UL/CSA. It provides an IP65 / NEMA type 12 enclosure with a red and yellow operator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC). Enclosed switch disconnector including a 3-pole switch-disconnector Vario V3 model. Conforming to IEC (IEC 60947-4-1, IEC 60204) and UL/CSA (UL 508 and CSA 22.2 ndegrees 14). NEMA type 12 enclosure rating, IP65 protection degree, sealable. Operating red handle for emergency stop, padlockable. Connections directly on the screw clamp terminals of the switch. Possible attachment of 2 add-on poles to the switch body , main (VZ3), neutral (VZ12), earthing (VZ15), auxiliary (VZ7, VZ20).

Features:

• Enclosure Type: Enclosed
• Number Of Poles: 3
• Overall Height (Decimal Inch): 7.6000
• Overall Width (Decimal Inch - 4 Decimals): 6.5000
• Overall Width (Inch): 5-63/64
