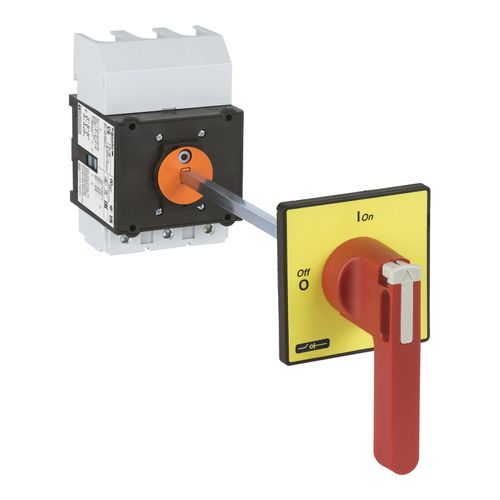

Main product image of Cam & Disconnect Switch, Enclosed & Fused (690VAC, 3 Pole), 4.92" OAH x 3.54" OAW, VCCF5
Magnifying glass
Hover image to zoom

Cam & Disconnect Switch, Enclosed & Fused (690VAC, 3 Pole), 4.92" OAH x 3.54" OAW, VCCF5

Brand:
Square D
SKU:
VCCF5
Rating:
(0)
Q&A:
(0)
Cam & Disconnect Switch, Enclosed & Fused (690VAC, 3 Pole), 4.92" OAH x 3.54" OAW, VCCF5
Magnifying glass
Hover image to zoom
$689.04 each
Backorder
Backorder
Get it Thu, Sep 3 - Fri, Oct 2

MANUALS (2)

Brochure
Install Instructions
Brochure
Install Instructions
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Height (Inches)
4.92" Height
Product Highlight: Voltage
690 VAC
Product Highlight: Width (Inches)
3.54" Width

Description

–

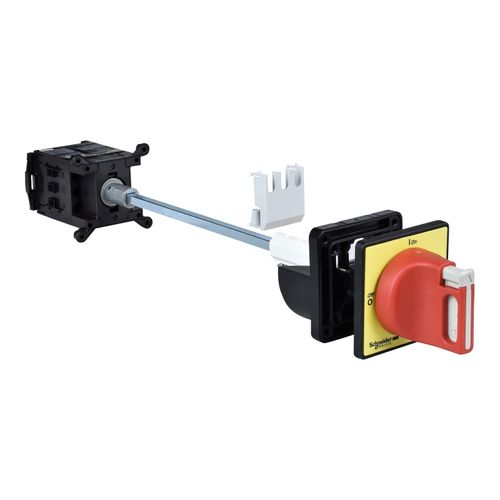

VCCF5 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric. Rated 125A 690V, it is used for main and emergency stop switching in motor applications up to 37kWat 400V AC-23. Composed of a V5 switch body, extension shaft, red padlockable handle, and a yellow 90x90mm front plate. For enclosure back mounting, with a 4 screw fixing handle, it ensures IP65 to the mounting. Available worldwide, multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Possible distance between back of enclosure and door 330-350mm. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).

Features:
  • Enclosure Type: Enclosed
  • Fused: Fused
  • Voltage: 690Vac
  • Contact Form: 3NO
  • Number Of Poles: 3

Specs

–
Height (Inches):

4.92"

Product Type:

Disconnect Switch

Voltage:

690 VAC

Poles:

3

Width (Inches):

3.54"
