Cam & Disconnect Switch, Enclosed & Fused (690VAC, 3 Pole), 2.91" OAH x 2.36" OAW, VCF0

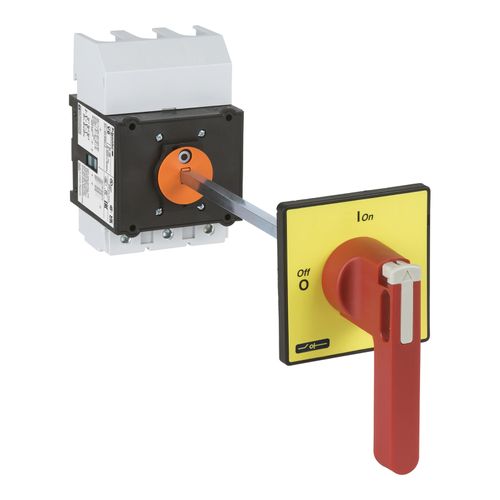

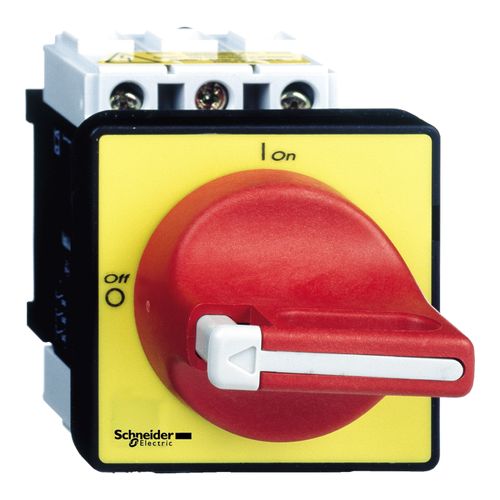

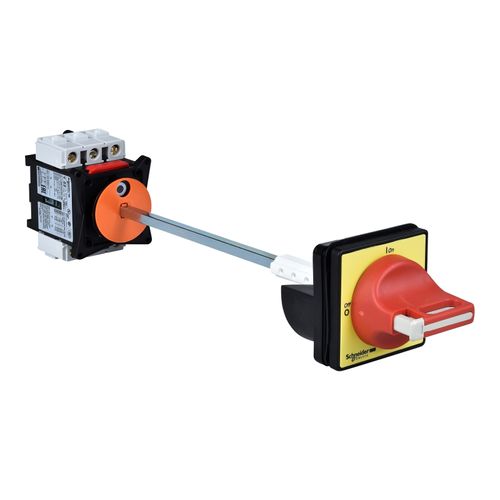

VCF0 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for emergency stop switching in motor applications 7.5kWat 400V AC-23. Door mounting with 4 screw fixing, it provides a red and yellow operator with IP65 protection. VCF0 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for main and emergency stop switching in motor applications 7.5kWat 400V AC-23. It consists of a V0 Vario switch body and a padlockable red and yellow operator to be mounted on door with 4 screws fixing. It ensures an IP65 protection to the mounting. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Vario 3-pole rotary switch disconnector for door mounting. Composed with a switch body V0 and a red and yellow operator, for emergency stop, padlockable. Ensures an IP65 protection to the mounting. Rated for 690V AC operation, DC operation is permitted until 250V, performance depending on the number of contacts in series. Possible attachment of 4 add-on poles (2 in each side) , main (VZ0), neutral (VZ11), earthing (VZ14), auxiliary (VZ7, VZ20).

Features:

• Enclosure Type: Enclosed
• Fused: Fused
• Voltage: 690Vac
• Contact Form: 3NO
• Number Of Poles: 3
