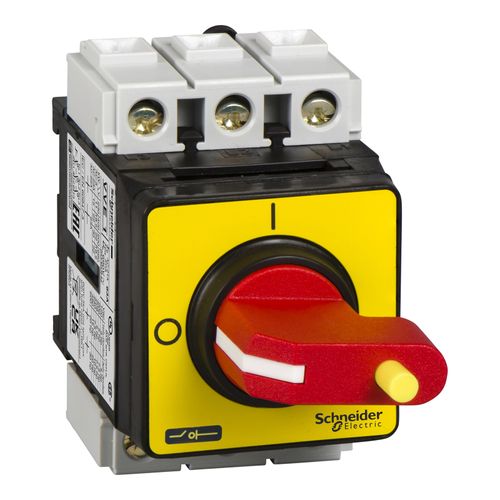

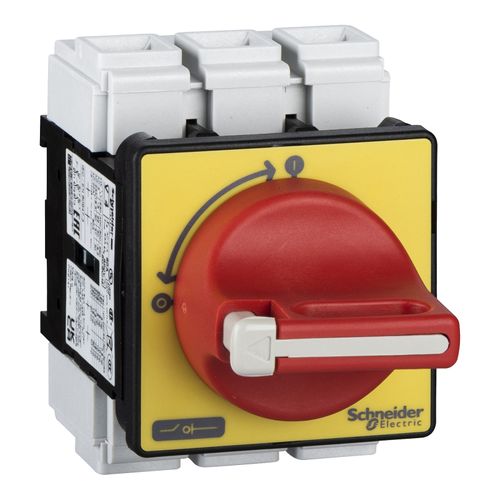

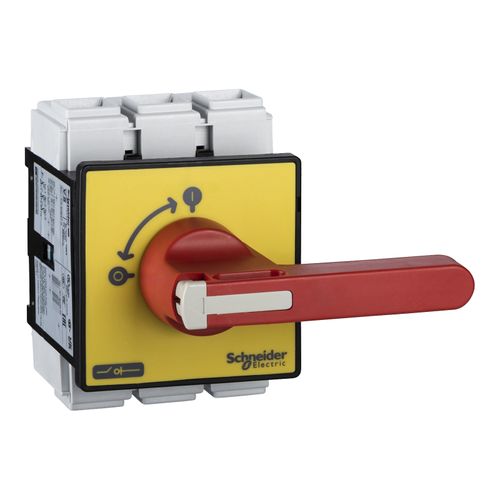

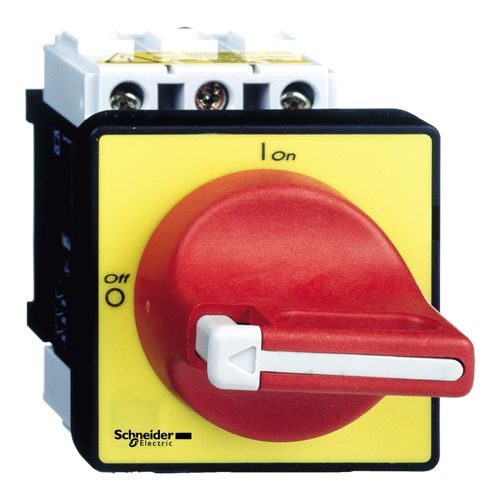

Cam & Disconnect Switch, Enclosed & Fused (690VAC, 3 Pole), 3.27" OAH x 2.36" OAW, VVE3

VVE3 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for emergency stop in motor applications 22kWat 400V AC-23. For mounting in modular panels, it provides a red and yellow operator and IP20 protection front face. VVE3 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for emergency stop in motor applications 22kWat 400V AC-23. It consists of a V3 Vario switch body with a padlockable red and yellow operator to be mounted in modular panels. It ensures an IP20 protection front face. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Vario 3-pole rotary switch disconnector for installation in modular panels. Composed with a switch body V3 and a red and yellow operator, for emergency stop (padlockable with 1 padlock). Ensures an IP20 protection degree front face. Rated for 690V AC operation, DC operation is permitted until 250V, performance depending on the number of contacts in series. Possible attachment of 4 add-on poles (2 in each side) , main (VZ3), neutral (VZ12), earthing (VZ15), auxiliary (VZ7, VZ20).

Features:

• Enclosure Type: Enclosed
• Fused: Fused
• Voltage: 690Vac
• Contact Form: 3NO
• Number Of Poles: 3
