Product Highlights
Description

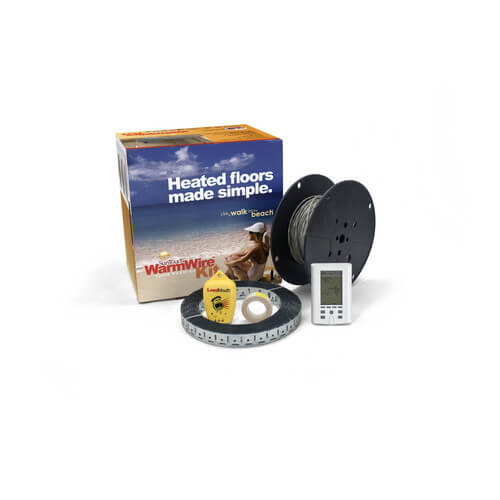

This Kit includes
- SunStat Programmable Thermostat
- 20 Sq Ft Spool of WarmWire
- Box of Strap
- Loudmouth Installation Monitor
Specs
| Application: | Radiant Heat |
|---|---|
| Coverage (Sq Ft.): | 20 |
| Voltage: | 120v |
| Type: | Electric Radiant |
| Includes: | Box of Strap Programmable Thermostat (500750-SB) Double-Sided Tape (423275ST) LoudMouth Monitor (423250ST) SunStat Relay II (500810-BB) |
Questions?
Product Reviews
Suntouch floor warming system
Don't tile WITH OUT Suntough warm floor
Product Q&A
12 QuestionsQ: If I use at 2.5" spacing, rather than the standard 3' or 3.5, what sq footage will a 100' wire cover?
Asked by jeffrey lake 10 years ago
Add your answer
Verified Reply- SupplyHouse StaffAt a spacing of 2.5" this kit will cover 84 sq. ft. This kit will cover 100 sq. ft. at a spacing of 3". The kit will cover 120 sq. ft at a spacing of 3.5".
Q: In the 150 sf Suntouch WarmWire Kit, is there: - 60 sf + 90 sf spools? - 2x25-ft long Warmwire straps? If more or less, how much? - 1x36 yd double sided tape? If more or less, how much?
Asked by Andrew 11 years ago
Add your answer
I had a 70 and 80 SF spool, wraps, tape, loud mouth and the programable thermostat which comes with a sensor wire. Sent from my iPhone
Q: Is the contoller programable for seven day setting?
Asked by bubba 12 years ago
Add your answer
Yes
Yes, but it is configure in 5-1-1 meaning you have to configure M-F the same Sat and Sun are done individually. However the thermostat that I have (SunStat Pro) has been replaced with a different model (SunStat Pro II) which does have 1-1-1-1-1-1-1 programming. My guess is depending on how old the kit is dependent on what thermostat you get.
Q: What kind of floors can the WarmWire be used on?
Asked by Dave 15 years ago
Add your answer
Verified Reply- PexSupply StaffThe manufacturer recommends tile or stone flooring. The product should be embedded in a cement-based or gypsum-based mortar if it is installed beneath vinyl, carpet, or wood flooring.
Q: Can the wire end be trimmed if it is too long?
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffAccording to the manufacturer, the cable should never be cut.
Q: Is a sensor included in the kit? I assume it is but it's not listed.
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffYes, the sensor is included with the thermostat that is part of the kit.
Q: Does this kit contain just one 130 foot roll of warm wire or a 60 foot and 70 foot roll to make up the 130 feet? I have seen the combination of rolls in other advertised kits. Thank you.
Asked by GWD 15 years ago
Add your answer
Verified Reply- PexSupply StaffThe 130 square foot kit includes a 60 foot and 70 foot roll to create the 130 square feet.
Q: Can I embed the wire in cement board backed, tile shower walls? I want to use the heat to dry the walls after taking a shower.
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffThis product is only designed for floor installations. Your application would not be recommended by the manufacturer.
Q: What is the model number of the warmwire?
Asked by davey 15 years ago
Add your answer
Verified Reply- PexSupply Staff45 foot WarmWire cable is part number 120045WDST ( http://www.pexsupply.com/Suntouch-120045WDST-45-Sq-Ft-WarmWire-Cable-120V-8409000-p ).
Q: Can more wire be added to this kit? I need about 45 sf of coverage. I installed this in my bathroom a few years ago and now want to install it in a portion of the kitchen we're renovating.
Asked by Dave 15 years ago
Add your answer
Verified Reply- PexSupply StaffYou can either add another 15 feet of cable ( http://www.pexsupply.com/Suntouch-120015WDST-15-Sq-Ft-WarmWire-Cable-120V-8403000-p ) or use the 45 foot kit ( http://www.pexsupply.com/Suntouch-120045WD-KIT-45-Sq-Ft-WarmWire-KIT-120-Volt-9222000-p ).
