Description

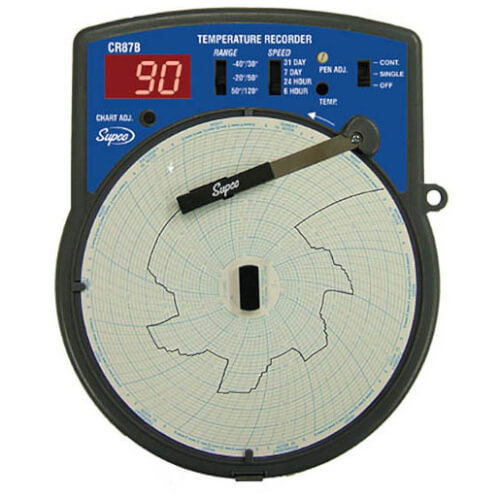

The CR87 six(6) inch chart recorder series sets the standard for reliable and rugged trend reporting. Choose the right model for your application.

Features:
  • Large LED display
  • Micro-controller design
  • Programmable speed and temperature ranges
  • Remote readings from up to 100 ft. (optional sensor wire p/n CABLE10T)
  • Free standing or wall mount
  • Fold-out support stand
  • Convenient folding handle
  • Comes with 2 cartridge pens and 60 (6" dia.) assorted charts
  • Front panel controls
  • Single or continuous chart rotation
  • Battery backup
  • 12 volt operation. Allows use in vehicular or marine operations
  • 6' Stainless steel tip probe included


Applications:
  • Designed for refrigerators/freezers, laboratory and environmental applications
  • Measures and records temperature in air, gas, liquids, powders, solids, and semi-solids


Specifications:
  • Chart Speed: Selectable 6 Hours, 24 Hours, 7 Days, 31 Day
  • Chart Speed Accuracy: +/- 1%
  • Chart Diameter: 6"
  • Temperature Display: 3 Digit LED 0.5"
  • Temperature Sensor: Stainless steel tip submersible with 15 ft. of cable
  • Recording Pen: Ink Type
  • Power Supply: 120 VAC, 50/60 Hz. or 220/240 VAC, 50Hz
  • Battery Backup: 8 Alkaline “AA” cells (Not included)
  • Battery Life: 48 Hours
  • Relative Humidity: 96% maximum
Hide Description
Manuals (1)
Specs
Product Type:

Temperature Recorder

Temperature Range (F):

-40°F to 120°F

Display:

LED

×
