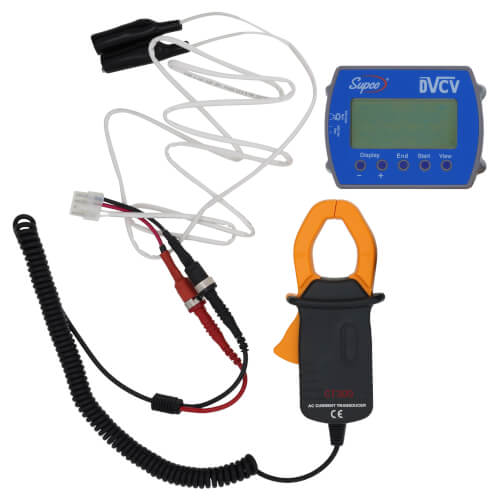

Dataview Current and Voltage Data Logger w/ Display

Data View Current & Voltage Logger

Instantly record and view critical performance parameters with the Dataview Series DVCV for Current, Voltage and Watts. Monitor real time measurements, and download to your PC for further analysis.

Features:

• Text Display for real time current, voltage and watts. Logging summary, sample rate, memory used, and memory remaining.
• Graph display shows trends in measurements, with a scrolling feature
• PC software and USB cable INCLUDED
• Three AA batteries INCLUDED
• Data expotable to text or Excel® files
• 30 character user ID field
• Recording start: on button, immediate after setup, or user specified date & time
• System requirements: 5MB free disk space, 800 x 600 screen resolution, 1 free USB port
• Visual Over / Under alarm indicators
• Compatible with Windows® 2000, XP, Vista and Windows® 7/8 & 10. 32 and 64 bit systems.
• User selectable sample intervals, 1 second to 9 hours
• Memory rollover, or stop on memory full
• Battery level indicator
• 43,344 Data points for current OR Voltage, 21,672 for BOTH current & voltage

Applications:

• Intermittent electrical problems
• Variable speed drives
• Industrial processes
• MRO

Specifications:

• Text Display: Displays real time current, voltage and watts. Displays logging summary, sample rate, memory used and memory left
• Sample Point Capacity: 43,344 points for current or voltage only. 21,672 points for current and voltage
• Measurement Type: True rms up to the 21st harmonic at 60Hz
• Current Range: 1 to 300 Amps AC
• Current Accuracy: +/- 1.0 A
• Current Resolution: 0.2 A
• Voltage Range: 1 to 600 Volts AC
• Voltage Accuracy: +/- 0.4 V
• Voltage Resolution: 0.2 V
