LOGiT Current & Voltage Data Logger

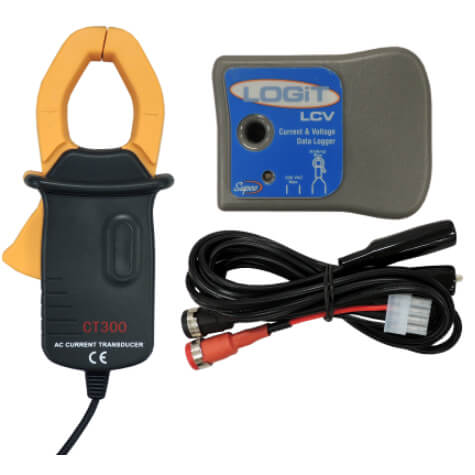

LCV Current & Voltage Data Logger

LOGiT Series data loggers are designed with the latest technology. Economic, compact and easy to use. Select the proper logger for your application, along with the LOGiT software interface package (LLSU)

Features:

• Data exportable to text or Excel® files
• Stores over 10,000 measurement points
• 30 character user ID field
• Recording Start, on button, immediate after setup, or user specified date & time
• System requirements: 5MB free disk space, 800 x 600 screen resolution, 1 free USB port
• Tamper proof
• Over / Under Alarm settings with visual indicator
• Real time data monitoring
• Compatible with Windows® 2000, XP, Vista and Windows 7/8 & 10. 32 and 64 bit systems
• Sample rate 1 second to 18 hours
• Memory rollover, or stop on memory full
• Password protected, user selectable single point offset calibration available through software

Applications:

• Compressor and Fan Run Cycles
• Verify power conditions
• Troubleshoot intermittent problems

Specifications:

• Sample Point Capacity: 10,750 points for Current & Voltage, 21,500 points for Current OR Voltage
• Sampling Rate: 1 second to 18 hours
• Alarms: Over and under alarms for current and voltage
• Time Accuracy: +/-100ppm @75°F
• Input Current Range: 0-300 Amps
• Current Accuracy: +/-5%
• Current Resolution: 0.1 Amp AC
• Voltage Range: 0-500 Volts AC only
• Voltage Accuracy: +/-1 VAC
• Voltage Resolution: 0.1 VAC
• Temperature Using Alkaline Battery: 32°F to 130°F
• Temperature Using Lithium Battery: -40°F to 150°F
• Operating Range Humidity: 0% to 95% RH, non-condensing
• Storage Temperature: -40°F to 170°F
• Calibration: Single point offset calibration available through software. Current and Voltage are factory calibrated.
• Power Source: 9V Alkaline or Lithium Battery (NOT INCLUDED)
