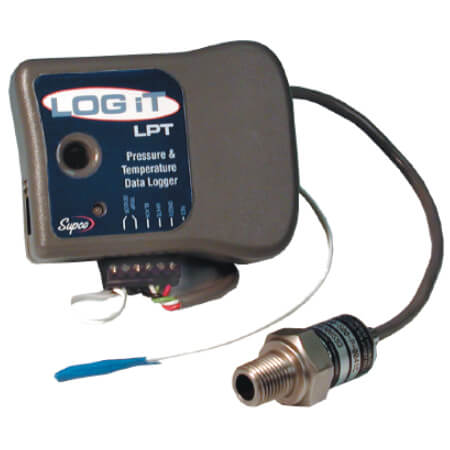

LOGiT Pressure Temperature Data Logger

LOGiT Pressure Temperature

LOGiT Series data loggers are designed with the latest technology. Economic, compact and easy to use. Select the proper logger for your application, along with the LOGiT software interface package (LLSU).

Features:

• Data exportable to text or Excel® files
• Stores over 10,000 measurement points
• Pressure transducer ¼" MPT
• 30 character user ID field
• Recording Start, on button, immediate after setup, or user specified date & time
• System requirements: 5MB free disk space, 800 x 600 screen resolution, 1 free USB port
• Tamper proof
• Over / Under Alarm settings with visual indicator
• Real time data monitoring
• Compatible with Windows® 2000, XP, Vista and Windows® 7/8 & 10. 32 and 64 bit systems
• Sample rate 1 second to 18 hours
• Memory rollover, or stop on memory full
• Password protected, user selectable single point offset calibration available through software

Applications:

• Compressor Run Cycles
• Testing new installations
• Troubleshoot intermittent problems

Specifications:

• Sample Point Capacity: 10,750 points for Pressure & Temperature, 21.500 points for Pressure OR Temperature
• Sampling Rate: 1 second to 18 hours
• Temperature Range: -40°F to 150°F
• Time Accuracy: +-100ppm @ 75°F
• Pressure Sensor Temperature Range: 32°F to 130°F
• Pressure Accuracy: +-3
• Pressure Resolution: 0.15 psi
• Pressure Connection: 1/4" MPT Pressure Sensor Connection
• Temperature Using Alkaline Battery: 32°F to 130°F
• Temperature Using Lithium Battery: -40°F to 150°F
• Operating Range Humidity: Non-Condensing
• Storage Temperature: -40°F to 170°F
• Power Source: 9V Alkaline or Lithium battery (not included)
