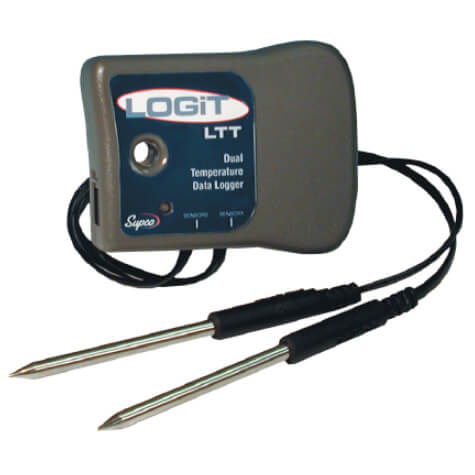

LOGiT Dual Temperature Data Logger

LOGiT Dual Temperature

LOGiT Series data loggers are designed with the latest technology. Economic, compact and easy to use. Select the proper logger for your application, along with the LOGiT software interface package (LLSU).

Features:

• Data exportable to text or Excel® files
• Stores over 10,000 measurement points
• Two independent, 6 foot external stainless steel tip sensors
• 30 character user ID field
• Recording Start, on button, immediate after setup, or user specified date & time
• System requirements: 5MB free disk space, 800 x 600 screen resolution, 1 free USB port
• Tamper proof
• Over / Under Alarm settings with visual indicator
• Real time data monitoring
• Compatible with Windows® 2000, XP, Vista and Windows® 7/8/ & 10. 32 and 64 bit systems
• Sample rate 1 second to 18 hours
• Memory rollover, or stop on memory full
• Password protected, user selectable single point offset calibration available through software

Applications:

• Refrigerators / Freezers
• Commercial refrigeration
• Medical storage facilities
• Greenhouses
• Museums
• Florists

Specifications:

• Sample Point Capacity: 21,500 temperature points (1 probe) 10,750 temperature points and differential (2 probes)
• Sampling Rate: 1 second to 18 hours
• Alarms: Over and under alarms for each probe
• Temperature Range (External Sensor): -50°F to 300°F
• Time Accuracy: +/-100ppm @75°F
• Relative Humidity Range: 0% to 95% RH, non-condensing
• Temperature Using Alkaline Battery: 32°F to 140°F
• Temperature Using Lithium Battery: -40°F to 150°F
• Storage Temp: -40°F to 170°F
• Calibration: Single point offset calibration available through software
• Power Source: 9V Alkaline or Lithium battery (NOT INCLUDED)
• Average Battery Life: 20 Months using Alkaline Battery/ 40 Months using Lithium Battery
