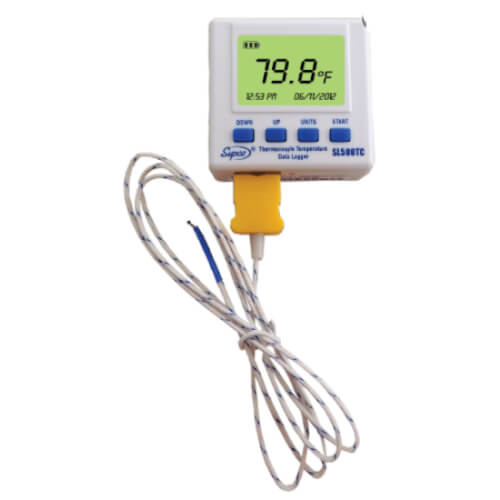

SL500 Thermocouple Temperature Data Logger w/ Display

SL500TC -- Thermocouple Temperature Data Logger

The SL500 series data loggers are simple to use, versatile test instruments which can be used in a multitude of applications. Each logger includes Windows® based software, with manual on CD, 3' USB cable and battery.

Features:

• Flexible sample rates range from 1 second to 9 hours
• Stores up to 32,638 temperature points
• Operator's manual included in software
• Also supports Types: J/E/N/T/S/R/B/C
• Type K insulated thermocouple wire 40"
• Optional NIST (National Institute of Standards & Technology) calibration available
• 1 year warranty
• Compact, light weight, simple to use
• 3 - AAA (Alkaline or Lithium recommended) Included
• 30 character user ID field
• Recording Start, on button, immediate after setup, or user specified date & time
• System requirements: 5MB free disk space, 800 x 600 screen resolution, 1 free USB port
• Password protected, user selectable single point offset calibration available through software
• USB Interface
• LCD real time display of temperature (°F or °C), time, date, alarm status, logging status, and battery life
• User selectable stop on memory full, or memory rollover for continuous logging
• Compatible with Windows® XP, Vista and Windows® 7/8 & 10
• Delayed start or push button logging control
• Displays alarm icon for high/low alarm status
• Non-volatile EEPROM memory retains data if battery fails
• Supplied probe rated -40°F to 500°F (-40°C to 260°C)

Applications:

• Coolers
• Freezers
• Warehouses
• Greenhouses
• Food Storage
• Computer rooms
• Shipping containers
• Museums
• Florists

Specifications:

• Sample Point Capacity: 32,638 temperature points.
• Includes: Type K insulated beaded wire thermocouple 40” (1m).
• Other Supported Thermocouples: J, E, N, T, S, R, B, C
• Display: Current reading and time, logging status, alarm status, recorded sample history, battery level, thermocouple type. Displays temperature up to 1999°F or 1999°C.
• Alarms: Visual over and under temperature alarms
• Display Temperature Resolution: 0.2°F (0.1°C) up to 199.9°F or °C. 1°F or 1°C above 200°F or 200°C
• Logged Temperature Resolution: 0.2°F
• Thermocouple Impedance: 50 Ohms maximum for specified accuracy
• Cold Junction Temperature Accuracy: +/- 0.5°F
• Calibration: User single point offset calibration is available through software. Calibration is password protected.
• Operating Temperature: 0°F to 131°F
• Storage Temperature: -20°F to 175°F
• Time Accuracy: +/- 100 ppm @ 75°F
• Power Source: 3-AAA batteries (Alkaline or Lithium recommended), included.
• Battery Life: 2-years average use
